Overview

Duration	40 minutes
Level	Intermediate
Prerequisites	Lab 01

[!IMPORTANT] This lab requires deployed Azure resources. Ensure at least apps 001, 003, and 004 are deployed before starting. If you have not deployed them, return to Lab 00, Exercise 0.5.

Learning Objectives

By the end of this lab, you will be able to:

• Install and configure Cloud Custodian with the c7n-azure provider
• Review Cloud Custodian policies for tagging, orphan detection, right-sizing, and idle resources
• Run Cloud Custodian scans against live Azure resources
• Convert Cloud Custodian JSON output to SARIF using the custodian-to-sarif.py converter

Exercises

Exercise 4.1: Review Custodian Policies

You will walk through the 4 policy files in src/config/custodian/ to understand what each one detects.

1. Open the src/config/custodian/ directory and review the policy files listed below.

2. Each Cloud Custodian policy file follows the same structure:

   policies:
     - name: policy-name        # Unique name for this rule
       resource: azure.type     # Azure resource type to scan
       filters:                 # Conditions that flag a violation
         - type: value
           key: properties.field
           value: some-value


3. Review the following policy reference table. Each row maps a policy file to the resource it scans and the violation it detects:

   Policy File	Policy Name	Target Resource	Violation Detected
   tagging-compliance.yml	check-required-tags	azure.resourcegroup	Missing governance tags
   orphan-detection.yml	find-orphaned-disks	azure.disk	diskState == Unattached
   orphan-detection.yml	find-orphaned-nics	azure.networkinterface	virtualMachine == null
   orphan-detection.yml	find-orphaned-public-ips	azure.publicip	ipConfiguration == null
   right-sizing.yml	detect-oversized-vms	azure.vm	D4s+ VMs in dev/test
   right-sizing.yml	detect-oversized-plans	azure.appserviceplan	P-tier/S3 plans in dev/test
   idle-resources.yml	detect-no-autoshutdown	azure.vm	Dev/test VMs not deallocated

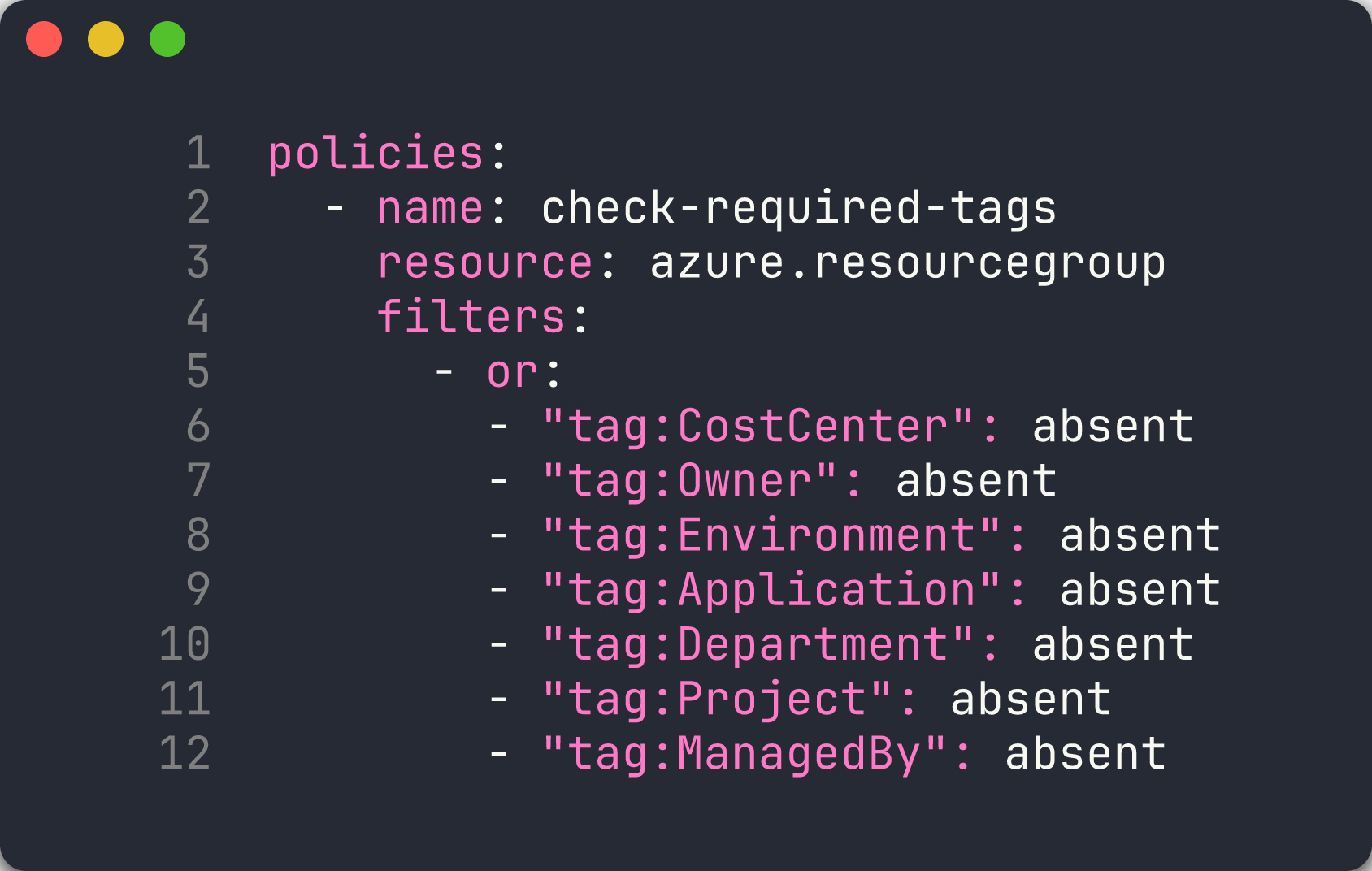

4. Open src/config/custodian/tagging-compliance.yml and examine how the or filter checks for any of the 7 required governance tags being absent:

   policies:
     - name: check-required-tags
       resource: azure.resourcegroup
       filters:
         - or:
           - "tag:CostCenter": absent
           - "tag:Owner": absent
           - "tag:Environment": absent
           - "tag:Application": absent
           - "tag:Department": absent
           - "tag:Project": absent
           - "tag:ManagedBy": absent


5. Open src/config/custodian/orphan-detection.yml and note how each policy targets a different Azure resource type. The find-orphaned-disks policy looks for disks with diskState == Unattached, while find-orphaned-nics checks for NICs where virtualMachine == null.

6. Open src/config/custodian/right-sizing.yml and observe the two-filter pattern: the first filter matches oversized SKUs (D4s+, P-tier, S3), and the second filter restricts to dev/test environments using the Environment tag.

7. Open src/config/custodian/idle-resources.yml and review how it detects VMs in dev/test that are not deallocated.

[!TIP] Cloud Custodian policies are declarative YAML. Unlike PSRule and Checkov which scan IaC files, Cloud Custodian queries live Azure resources through the Azure Resource Manager API. This means it catches violations that only appear at runtime — such as orphaned resources created outside of IaC.

Exercise 4.2: Run Tagging Compliance

You will run the tagging compliance policy against your deployed Azure resources.

1. Create the output directory:

   mkdir -p output

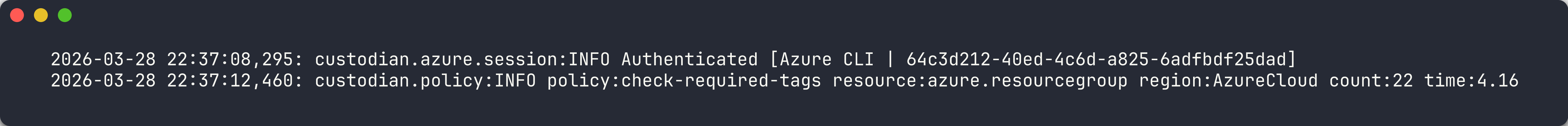

2. Run the tagging compliance scan:

   custodian run -s output/ src/config/custodian/tagging-compliance.yml --cache-period 0


   The -s output/ flag sets the output directory. The --cache-period 0 flag disables caching so you always get fresh results.

3. Review the scan output. Cloud Custodian reports the number of resources matched by each policy.

4. Check the JSON output file:

   cat output/check-required-tags/resources.json


   Each entry in the array is an Azure resource group that is missing at least one of the 7 required governance tags. App 001 deploys resources with zero tags, so its resource group should appear.

[!NOTE] Cloud Custodian creates a subdirectory under output/ named after the policy (for example, output/check-required-tags/). Each subdirectory contains a resources.json file with the matched resources and optional metadata files.

Exercise 4.3: Run Orphan Detection

You will scan for orphaned resources that are incurring costs but not attached to any workload.

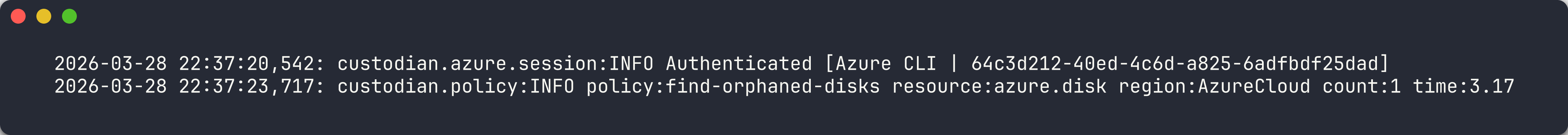

1. Run the orphan detection scan:

   custodian run -s output/ src/config/custodian/orphan-detection.yml --cache-period 0


2. This policy file contains 3 separate policies. Each one creates its own output subdirectory:
   • output/find-orphaned-disks/resources.json
   • output/find-orphaned-nics/resources.json
   • output/find-orphaned-public-ips/resources.json

3. Review the orphan results:

   cat output/find-orphaned-disks/resources.json
   cat output/find-orphaned-nics/resources.json
   cat output/find-orphaned-public-ips/resources.json


4. App 003 deploys unattached Public IPs, NICs, Managed Disks, and NSGs. You should see findings from this app’s resource group in the output.

[!IMPORTANT] Orphaned resources are one of the most common sources of cloud waste. A single unattached managed disk can cost $5–$75 per month depending on the tier and size. Cloud Custodian can detect these automatically on a schedule.

Exercise 4.4: Run Right-Sizing

You will scan for oversized resources in development and test environments.

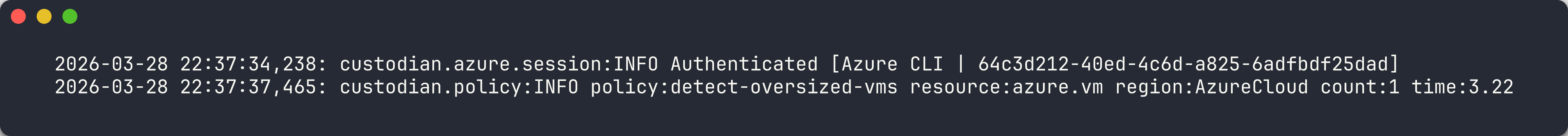

1. Run the right-sizing scan:

   custodian run -s output/ src/config/custodian/right-sizing.yml --cache-period 0


2. Review the output files:

   cat output/detect-oversized-vms/resources.json
   cat output/detect-oversized-plans/resources.json


3. App 002 deploys a P3v3 App Service Plan for a development workload. The detect-oversized-plans policy should flag this as a violation because P-tier plans are excessive for dev/test environments.

4. App 004 deploys a D4s_v5 VM. The detect-oversized-vms policy should flag this if the resource group has a dev/test Environment tag.

[!TIP] Right-sizing policies work best when you enforce consistent environment tagging. The policies in this workshop only flag oversized resources in environments tagged as Development, Dev, or Test. Production resources are excluded by design.

Exercise 4.5: Convert to SARIF

You will convert Cloud Custodian’s JSON output to SARIF format for upload to the GitHub Security tab.

1. Create the reports directory:

   mkdir -p reports

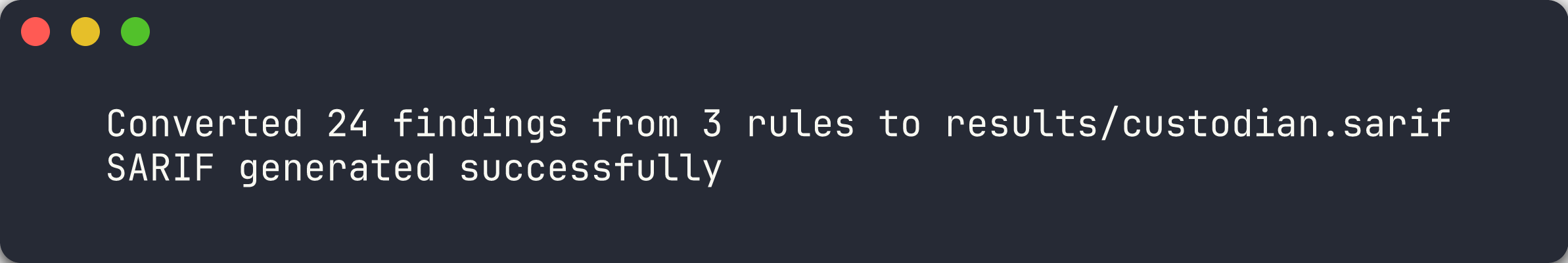

2. Run the SARIF converter:

   python src/converters/custodian-to-sarif.py output/ reports/custodian.sarif --resource-group rg-finops-demo-001


   The --resource-group flag filters results to show only resources belonging to the specified resource group. In the automated pipeline, each matrix job passes its own resource group name.

3. Open the generated SARIF file and inspect its structure:

   cat reports/custodian.sarif


4. Verify that the SARIF file contains:
   • A tool.driver section with name: "custodian-to-sarif"
   • A rules array mapping Cloud Custodian policy names to SARIF rule IDs
   • A results array with findings that include physicalLocation pointing to infra/main.bicep

5. Try converting with a different resource group and compare the output:

   python src/converters/custodian-to-sarif.py output/ reports/custodian-003.sarif --resource-group rg-finops-demo-003


[!NOTE] The custodian-to-sarif.py converter adds physicalLocation with artifactLocation pointing to infra/main.bicep. This is required by GitHub Code Scanning — the SARIF spec allows logical-only locations, but GitHub rejects SARIF without a physical file path.

Verification Checkpoint

Before proceeding, verify:

• Cloud Custodian ran at least 2 policies successfully
• JSON output generated in output/ directory with matched resources
• SARIF file generated by custodian-to-sarif.py with valid structure
• Can explain Cloud Custodian policy structure and filter syntax

Next Steps

Proceed to Lab 05 — Infracost: Cost Estimation and Budgeting.
