Overview

Duration	25 minutes
Level	Beginner
Prerequisites	Lab 00

Learning Objectives

By the end of this lab, you will be able to:

• Describe the 5 demo apps and their intentional FinOps violations
• Read Bicep templates and identify cost governance issues visually
• Explain the 7 required governance tags and their format rules
• Navigate the Azure Portal to view deployed resources and inspect their tags

Exercises

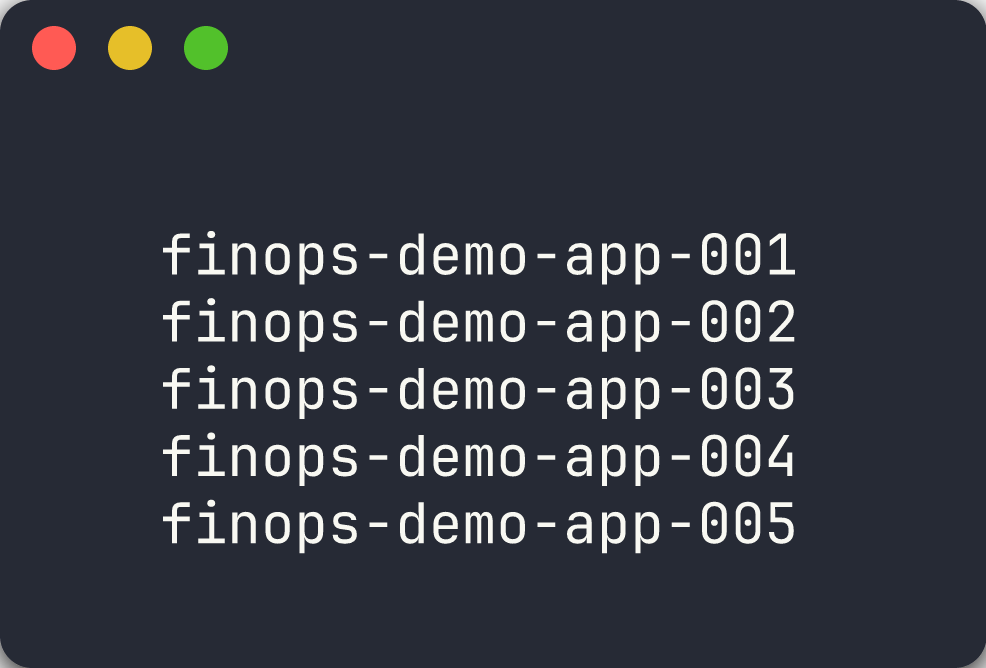

Exercise 1.1: Review Demo App Matrix

Each demo app is designed to trigger a specific category of FinOps cost governance violation. You will review the full matrix to understand what the scanners will detect.

1. Open the table below and study each app’s violation type, key resources, and estimated monthly waste:

   App	Violation	Key Resources	Monthly Waste Est.
   001	Missing all 7 required tags	Storage Account + App Service Plan + Web App	Compliance risk
   002	Oversized resources for dev workload	P3v3 App Service Plan + Premium Storage	~$800/month
   003	Orphaned resources (unattached)	Public IP + NIC + Managed Disk + NSG	~$25/month
   004	No auto-shutdown on VM	D4s_v5 Virtual Machine running 24/7	~$100/month
   005	Redundant/expensive configuration	2× S3 App Service Plans in non-approved regions + GRS Storage	~$450/month

2. Note how violations fall into distinct categories: tagging, right-sizing, orphaned resources, scheduling, and redundancy.

3. Consider which scanner tool is best suited for each violation type. You will validate your predictions in Labs 02-05.

Exercise 1.2: Read Bicep Templates

You will open Bicep templates to identify cost governance issues directly in the infrastructure code.

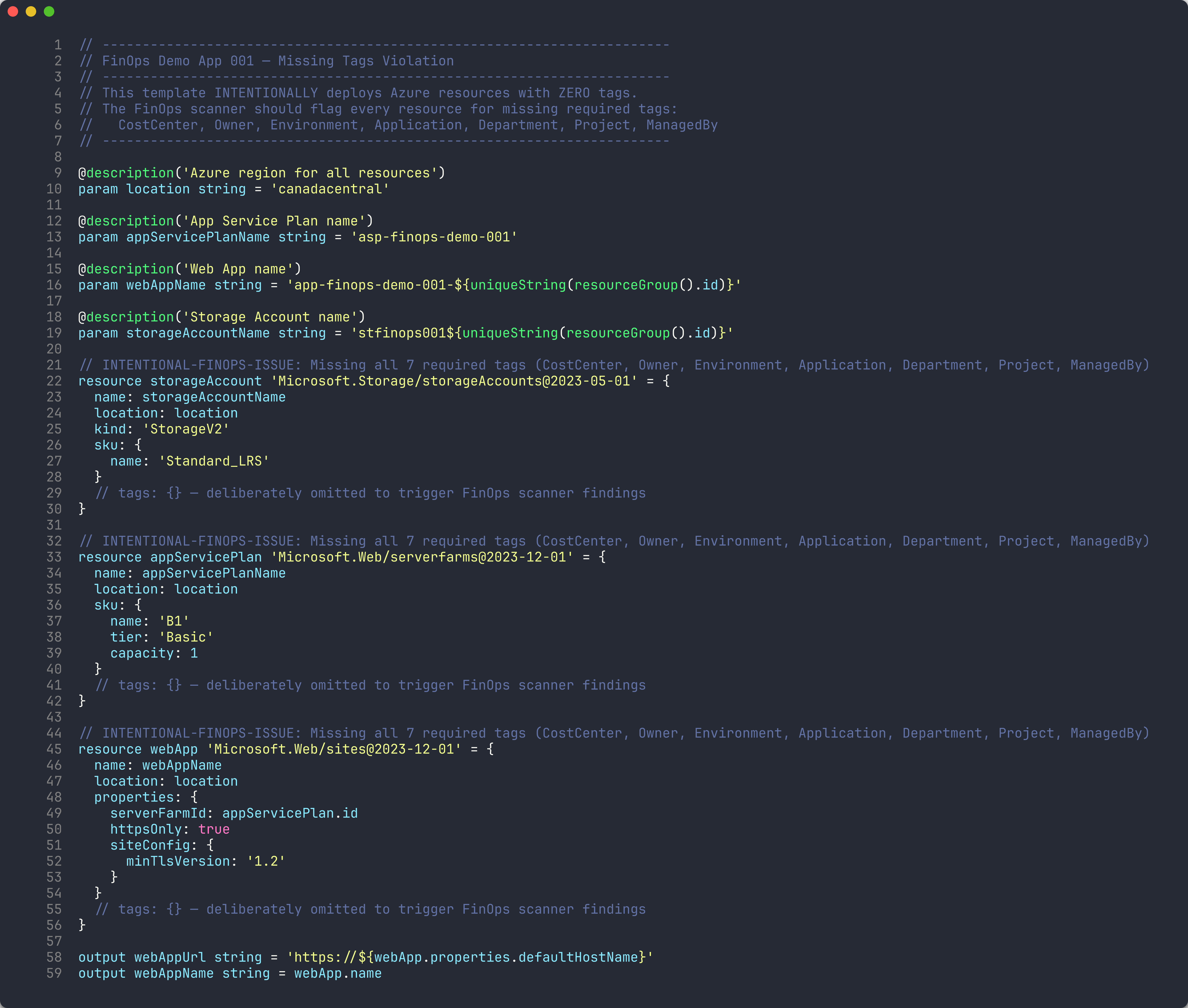

App 001 — Missing Tags

1. Open finops-demo-app-001/infra/main.bicep in VS Code.
2. Scroll through the three resource definitions: storageAccount, appServicePlan, and webApp.

3. Notice that none of the resources have a tags property. Comments in the code confirm this is intentional:

   // tags: {} — deliberately omitted to trigger FinOps scanner findings


4. Count the number of resources affected — you should find 3 resources with zero tags.

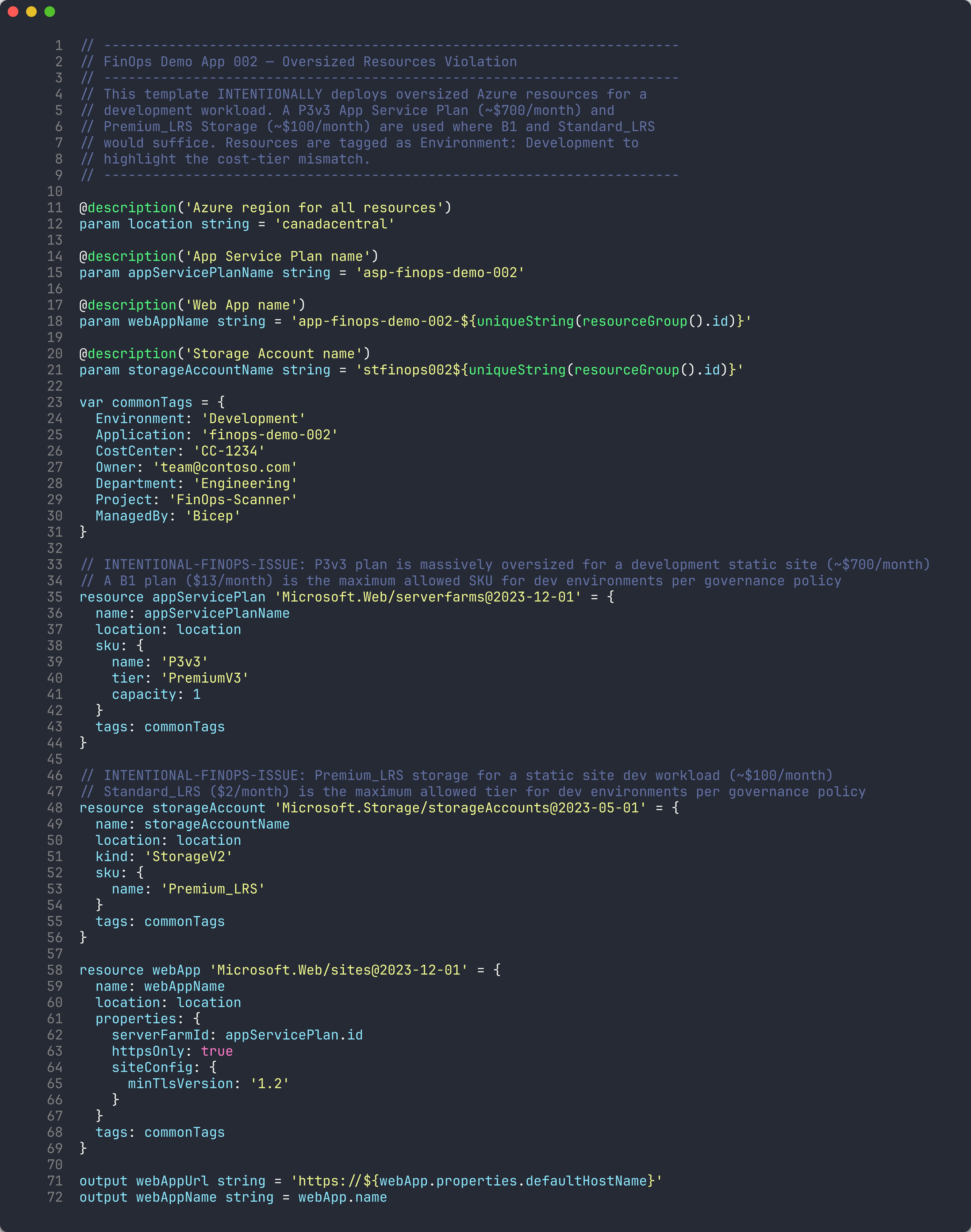

App 002 — Oversized Resources

1. Open finops-demo-app-002/infra/main.bicep.

2. Find the App Service Plan resource and note the SKU:

   sku: {
     name: 'P3v3'
     tier: 'PremiumV3'
     capacity: 1
   }


3. Compare this against the governance policy: dev environments allow a maximum of B1 (see the SKU Governance table below).

   Environment	Max App Service Plan	Max VM Size	Max Storage Tier
   dev	B1	Standard_B2s	Standard_LRS
   staging	S1	Standard_D2s_v5	Standard_LRS
   prod	P1v3	Standard_D4s_v5	Standard_GRS

4. The commonTags variable shows Environment: 'Development', confirming this is a dev workload using a production-tier plan.

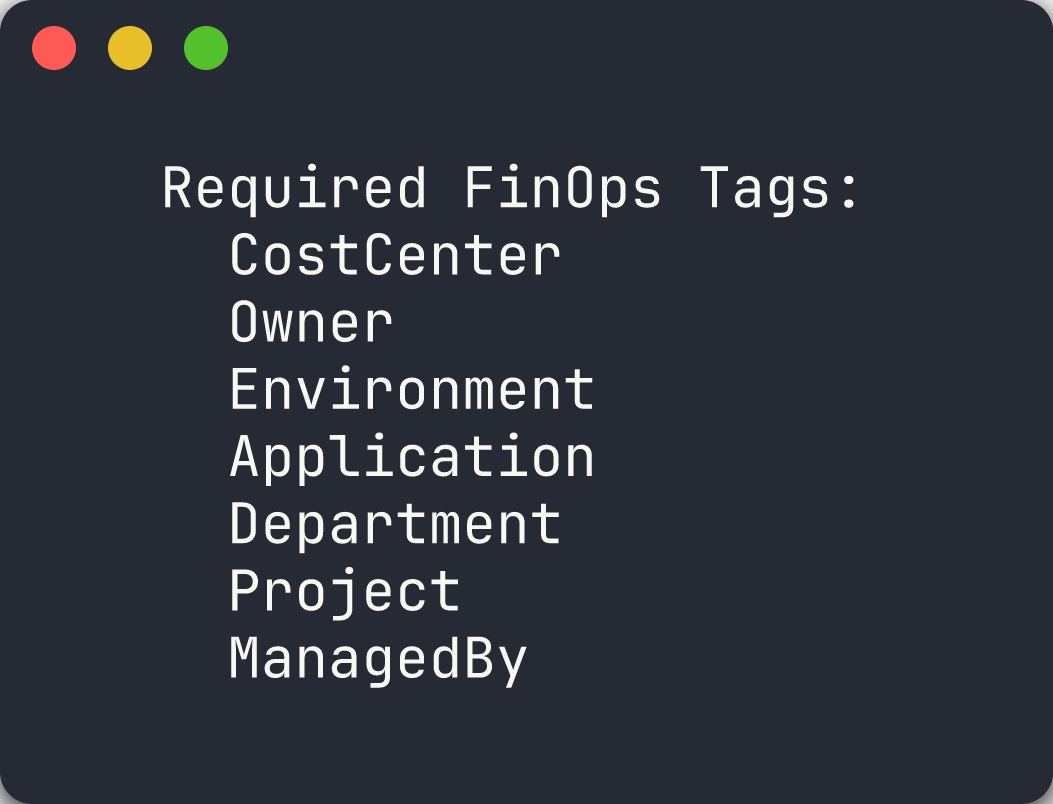

Exercise 1.3: Governance Tag Checklist

Every Azure resource must include the following 7 tags. You will use this checklist throughout the workshop to evaluate scanner findings.

1. Review the required tags table:

   #	Tag Name	Purpose	Example Values
   1	CostCenter	Financial cost center for chargeback	CC-1234, CC-5678
   2	Owner	Resource owner contact	team@contoso.com
   3	Environment	Deployment environment	dev, staging, prod
   4	Application	Application identifier	finops-demo-001
   5	Department	Organizational department	Engineering, Finance
   6	Project	Project name or code	FinOps-Scanner
   7	ManagedBy	Management mechanism	Bicep, Terraform, Manual

2. Note the format rules:
   • Tag names use PascalCase
   • Tag values must not be empty strings
   • Environment must be one of: dev, staging, prod, shared
   • Owner must be a valid email address
   • CostCenter must match pattern CC-\d{4,6}

3. Open finops-demo-app-001/infra/main.bicep again and confirm that zero of the 7 tags are present on any resource.

4. Open finops-demo-app-002/infra/main.bicep and verify that all 7 tags are present in the commonTags variable.

[!TIP] App 001 is the worst offender for tagging compliance. Apps 002-005 all include tags but violate other governance policies (sizing, orphans, scheduling, redundancy).

Exercise 1.4: Azure Portal Exploration

You will view the deployed resources in the Azure Portal to see how violations appear at runtime.

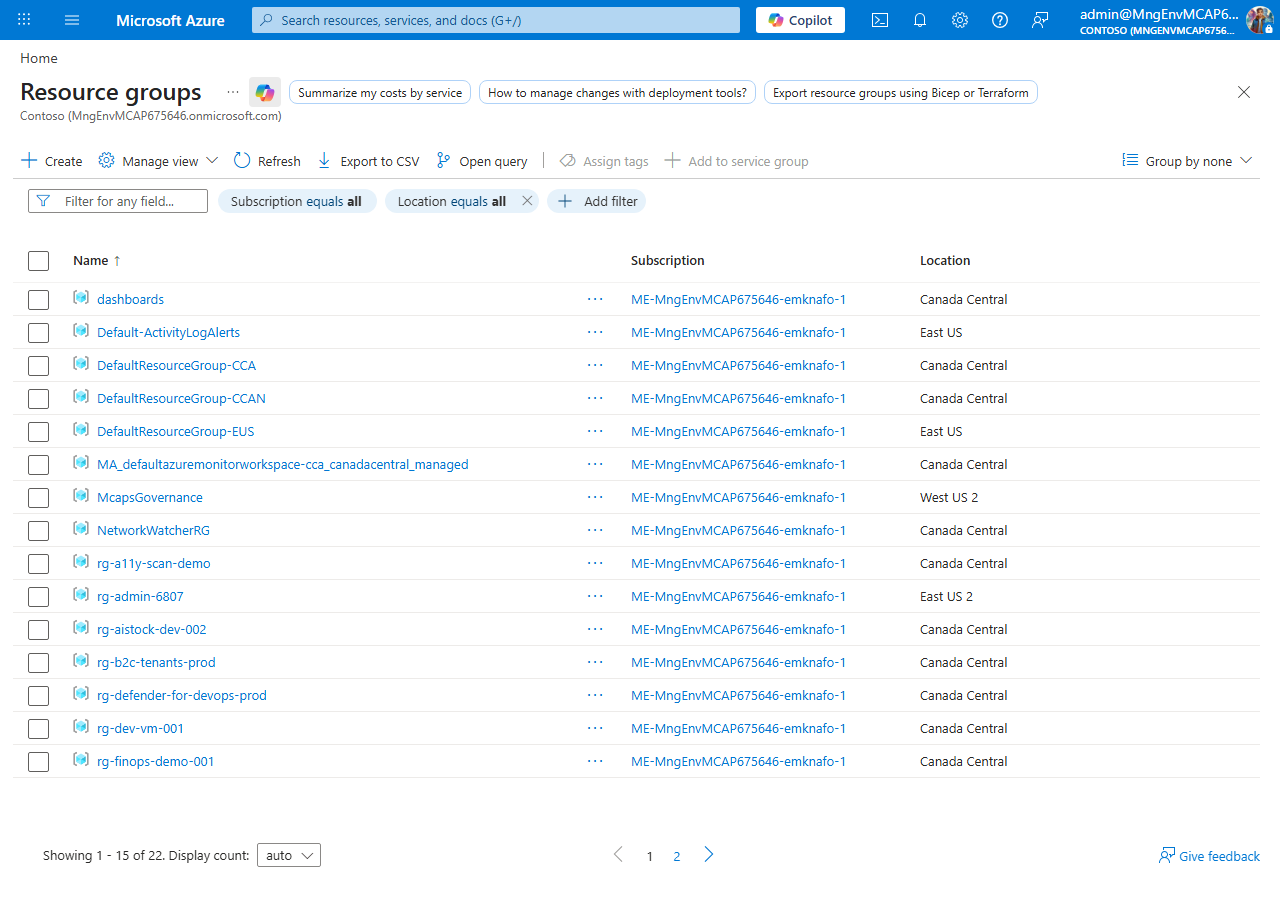

1. Open the Azure Portal and navigate to Resource groups.
2. Search for rg-finops-demo-001 and open it.

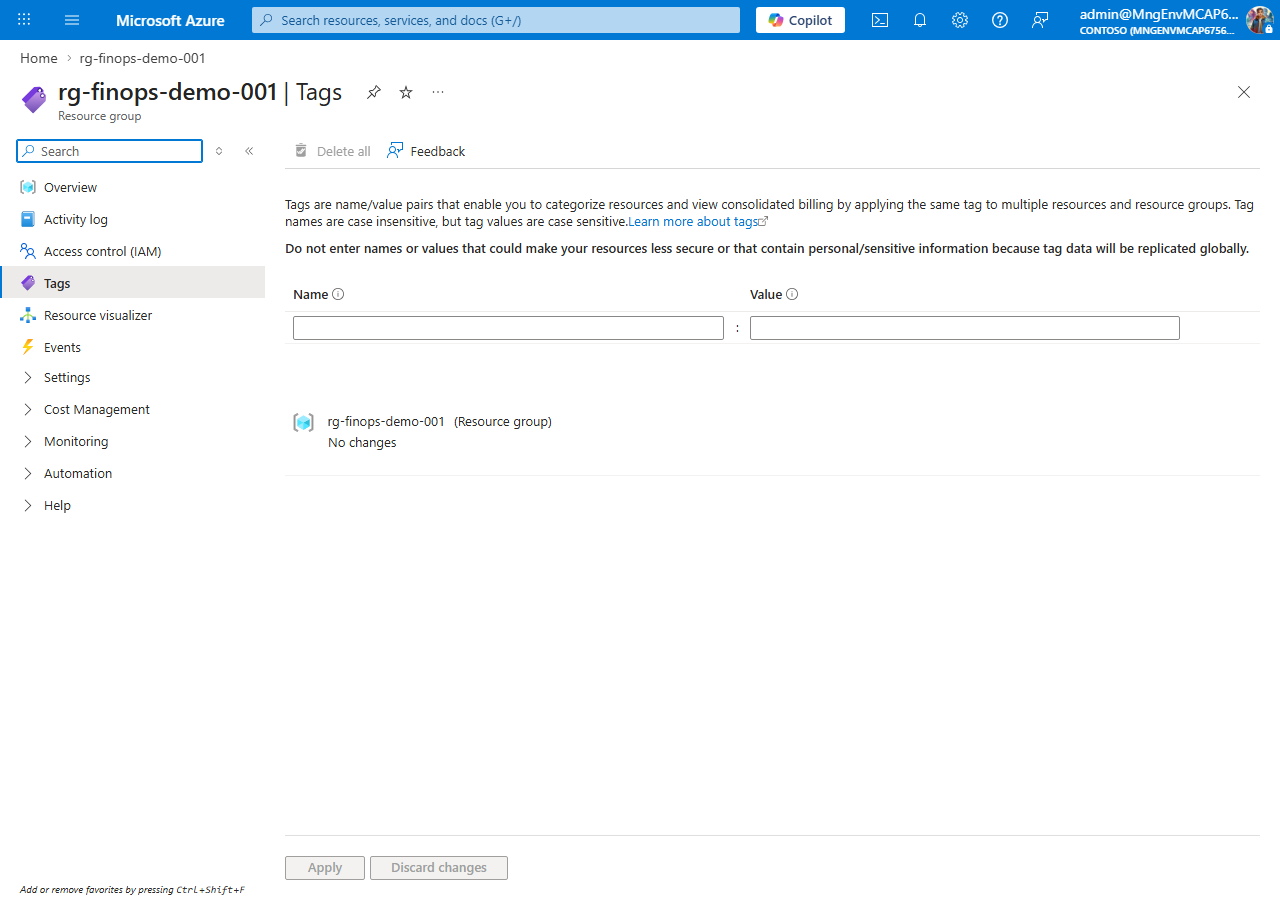

3. Select any resource (for example, the Storage Account) and click Tags in the left menu.

4. Confirm the tags panel is empty — no tags applied.



5. Navigate to rg-finops-demo-002 and open the App Service Plan.
6. Check the Pricing tier — it should show P3v3.

7. Click Tags and confirm all 7 governance tags are present, but the tier is oversized for a Development environment.



[!IMPORTANT] If resource groups are missing, return to Lab 00, Exercise 0.5 and deploy the demo apps before continuing.

Verification Checkpoint

Before proceeding, verify:

• Can name all 5 violation categories (missing tags, oversized, orphaned, no auto-shutdown, redundant)
• Can identify at least 3 violations by reading Bicep main.bicep files
• Can list the 7 required governance tags from memory
• Viewed at least one resource group in the Azure Portal

Next Steps

Proceed to Lab 02 — PSRule: Infrastructure as Code Analysis.
