Overview

[!NOTE] This workshop is part of the Agentic Accelerator Framework.

Duration	30 minutes
Level	Beginner
Prerequisites	None

[!IMPORTANT] This lab requires an Azure subscription with Contributor access and a GitHub account. You will deploy resources that incur costs. Remember to tear down demo resources after the workshop.

Learning Objectives

By the end of this lab, you will be able to:

• Fork and clone the finops-scan-demo-app repository
• Install the 4 required scanner tools (PSRule, Checkov, Cloud Custodian, Infracost)
• Authenticate with Azure using the Azure CLI
• Verify all tool installations with version checks
• Deploy the 5 demo apps to your Azure subscription

Exercises

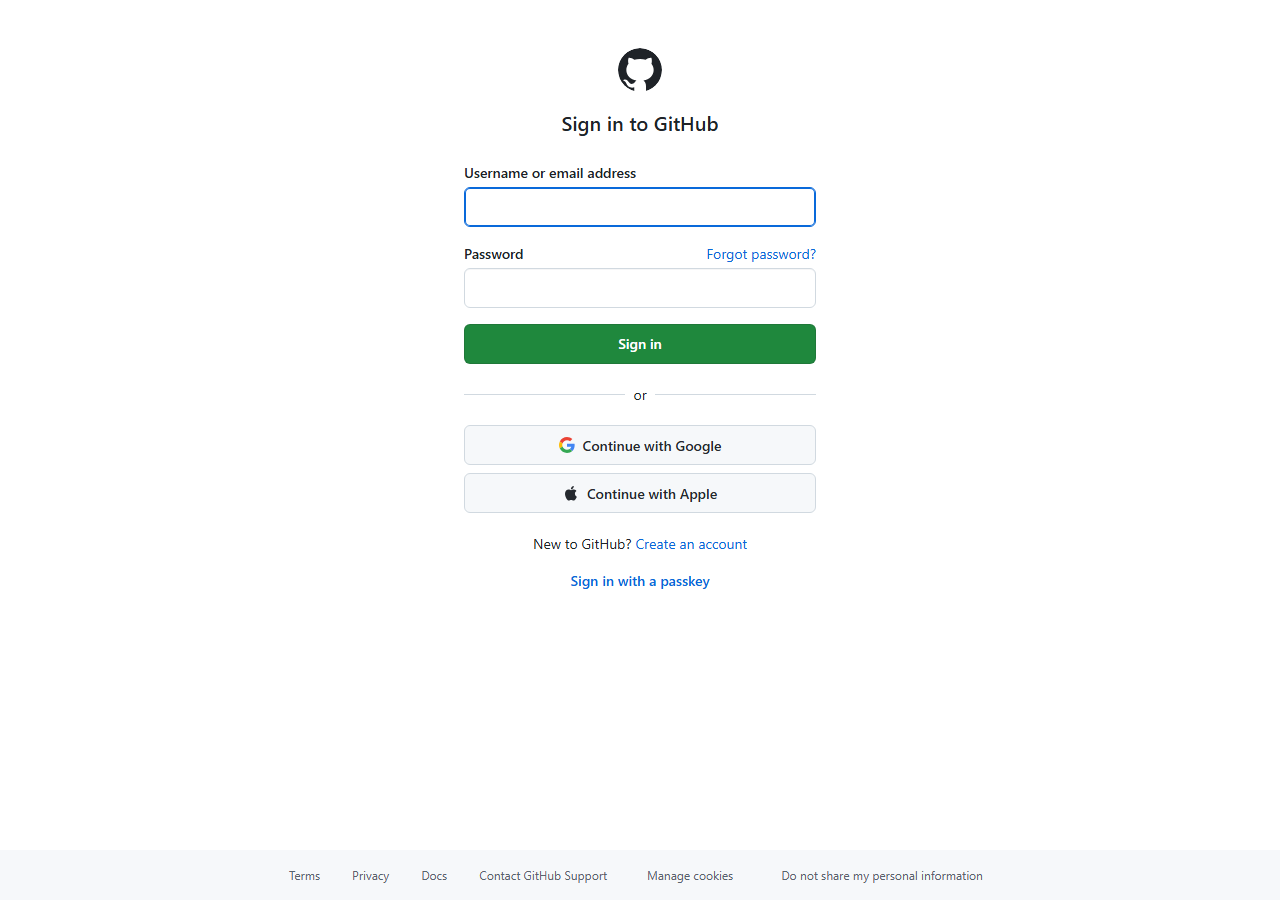

Exercise 0.1: Fork the Repository

You will fork the workshop’s source repository so you have your own copy to scan and modify.

1. Open a terminal (PowerShell or bash).

2. Fork and clone the repository using the GitHub CLI:

   gh repo fork devopsabcs-engineering/finops-scan-demo-app --clone


3. Change into the cloned directory:

   cd finops-scan-demo-app


4. Verify the remote points to your fork:

   git remote -v


   You should see your GitHub username in the origin URL.

[!TIP] If you do not have the GitHub CLI installed, run winget install GitHub.cli on Windows or brew install gh on macOS first.

Exercise 0.2: Install Scanner Tools

You will install the 4 scanner tools used throughout the workshop.

1. PSRule for Azure — Install the PowerShell module:

   Install-Module PSRule.Rules.Azure -Scope CurrentUser -Force


2. Checkov — Install via pip:

   pip install checkov


3. Cloud Custodian — Install the core package and Azure provider:

   pip install c7n c7n-azure


4. Infracost — Install the CLI:

   # Windows
   choco install infracost
   # or download from https://www.infracost.io/docs/#quick-start


   # macOS / Linux
   brew install infracost


5. Azure CLI — If not already installed:

   winget install Microsoft.AzureCLI


[!TIP] Use a Python virtual environment to keep Checkov and Cloud Custodian dependencies isolated: python -m venv .venv && .venv/Scripts/Activate.ps1 (PowerShell) or source .venv/bin/activate (bash).

Exercise 0.3: Azure Authentication

You will authenticate with Azure so the scanners can access your subscription.

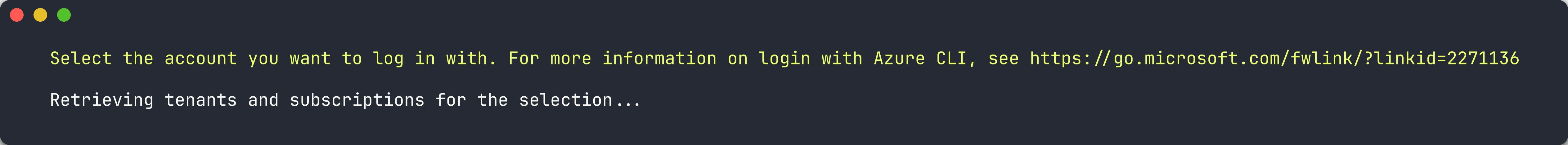

1. Sign in to Azure:

   az login


2. If you have multiple subscriptions, set the target subscription:

   az account set --subscription "<your-subscription-name-or-id>"


3. Verify you are authenticated with the correct subscription:

   az account show --output table


   Confirm the Name and SubscriptionId match your intended target.

Exercise 0.4: Tool Verification

You will run version checks to confirm every tool is installed correctly.

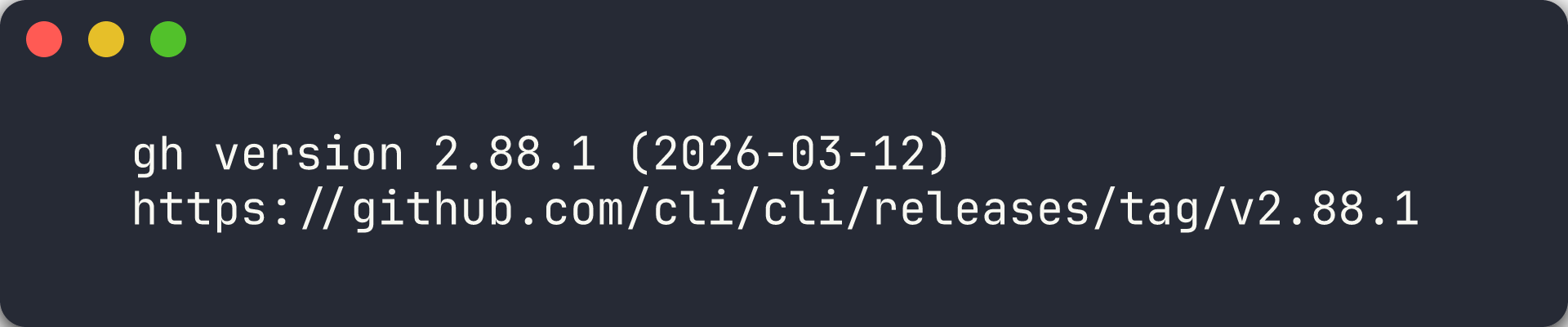

1. GitHub CLI:

   gh --version

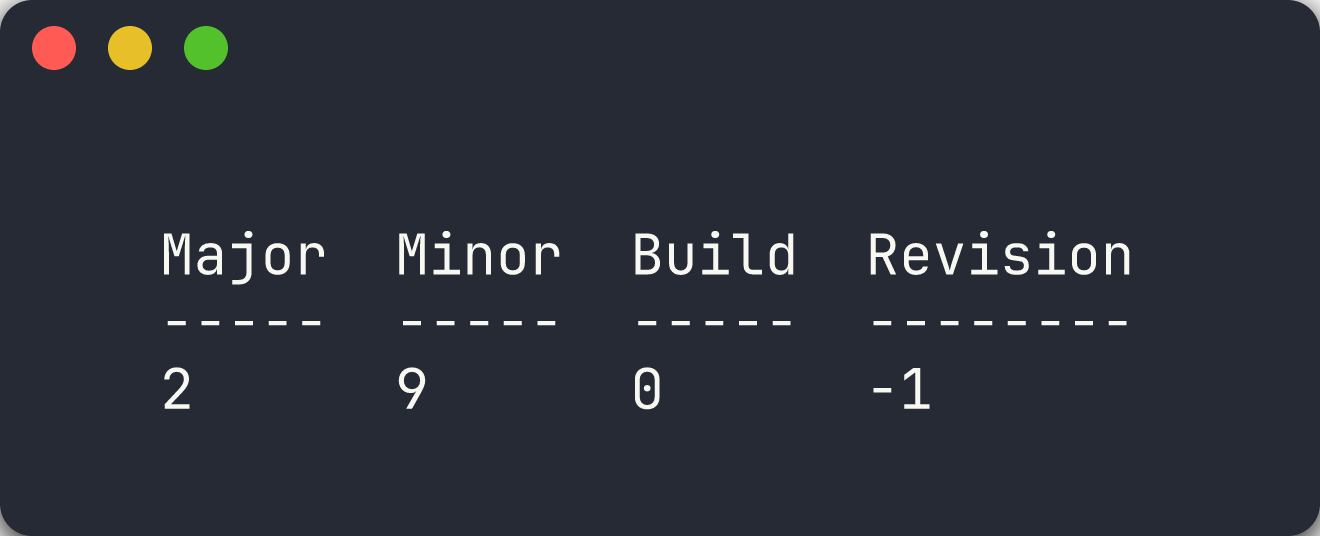

2. PSRule:

   Get-Module PSRule.Rules.Azure -ListAvailable | Select-Object Name, Version

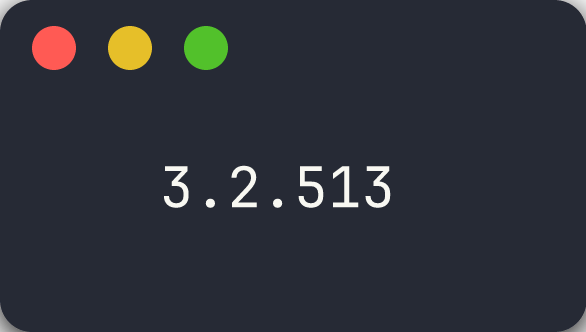

3. Checkov:

   checkov --version

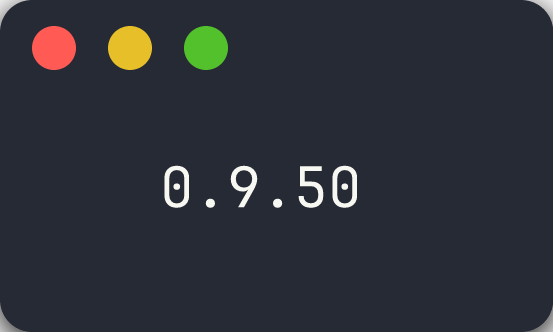

4. Cloud Custodian:

   custodian version

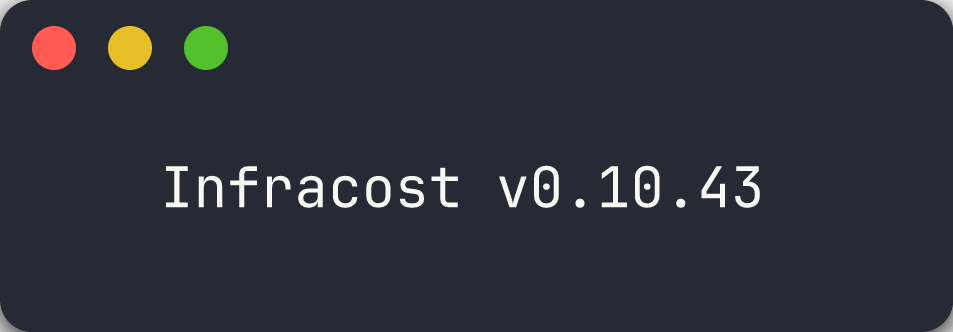

5. Infracost:

   infracost --version




[!CAUTION] If any tool fails the version check, resolve the installation issue before proceeding. Later labs depend on all 4 scanners being available.

Exercise 0.5: Deploy Demo Apps

You will deploy the 5 demo apps to Azure so the scanners have real resources to analyse.

Option A — Automated Deployment (Recommended)

1. Run the bootstrap script from the repository root:

   ./scripts/bootstrap-demo-apps.ps1


   The script creates 5 resource groups (rg-finops-demo-001 through rg-finops-demo-005) and deploys each app’s Bicep template.



Option B — Manual Single-App Deployment

1. Create the resource group for app 001:

   az group create --name rg-finops-demo-001 --location canadacentral


2. Deploy the Bicep template:

   az deployment group create \
     --resource-group rg-finops-demo-001 \
     --template-file finops-demo-app-001/infra/main.bicep


3. Repeat for additional apps as needed during later labs.

[!IMPORTANT] The demo apps intentionally deploy resources with FinOps violations. These resources incur real Azure costs. Run the teardown script after completing the workshop: ./scripts/teardown-all.ps1.

Verification Checkpoint

Before proceeding, verify:

• Repository forked and cloned locally
• All 4 scanner tools installed and returning version output
• Azure CLI authenticated with the correct subscription
• At least finops-demo-app-001 deployed to Azure

Next Steps

Proceed to Lab 01 — Explore the Demo Apps and FinOps Violations.
