Overview

Duration	30 minutes
Level	Intermediate
Prerequisites	Lab 01

Learning Objectives

By the end of this lab, you will be able to:

• Run Checkov against Bicep templates using the CLI
• Interpret Checkov output including passed, failed, and skipped checks
• Export Checkov results in SARIF format for GitHub Security Tab integration
• Compare Checkov findings with PSRule findings for the same template

Exercises

Exercise 3.1: Run Checkov on App 001

You will scan the missing-tags app with Checkov and generate SARIF output.

1. Create the reports directory if it does not exist:

   mkdir -p reports

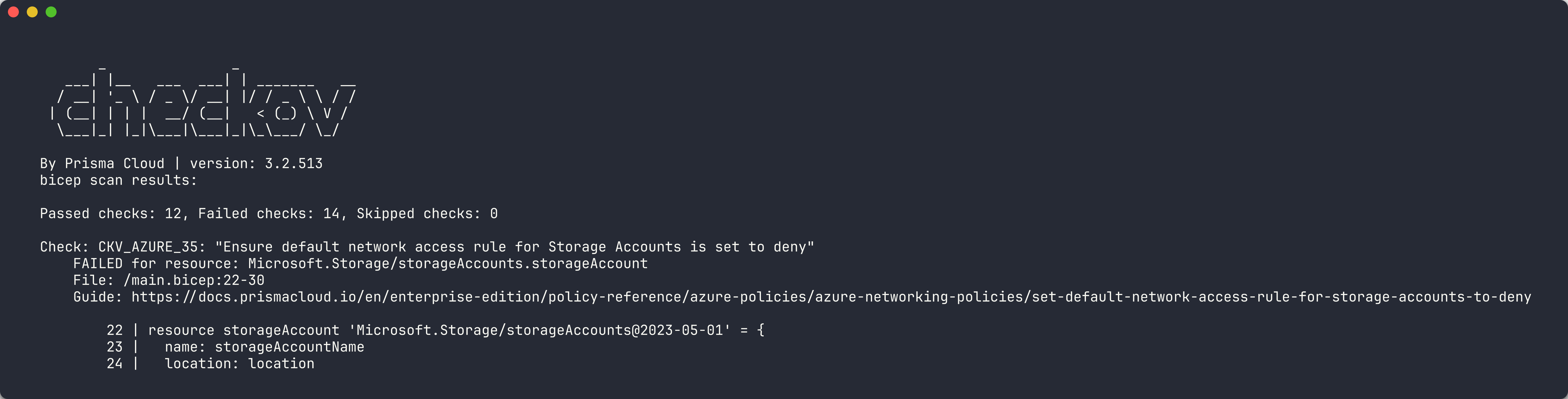

2. Run Checkov against app 001 with both console and SARIF output:

   checkov -d finops-demo-app-001/infra/ --output cli --output sarif --output-file-path console,reports/


   This produces CLI output on screen and writes a SARIF file to the reports/ directory.

3. Review the CLI output. Checkov summarises results in three categories:
   • Passed — checks the template satisfies
   • Failed — checks the template violates
   • Skipped — checks excluded by configuration
4. Note the check IDs for any failed findings. Checkov uses IDs in the format CKV_AZURE_* (for example, CKV_AZURE_18 for storage account network rules).

[!TIP] Checkov scans for both security and best practice violations. You will see checks related to HTTPS enforcement, TLS version, access keys, and network configuration — not only cost governance. This broader coverage complements PSRule’s Azure-specific focus.

Exercise 3.2: Review Checkov Findings

You will analyse the Checkov results to understand what each finding means.

1. Open the SARIF file generated by Checkov in the reports/ directory.

2. Look at the results array. Each entry contains:
   • ruleId — the Checkov check ID (for example, CKV_AZURE_18)
   • level — severity of the finding
   • message.text — description of the failed check
   • locations — file path and resource reference

3. Categorise the findings into groups:

   Category	Example Check IDs	Description
   Network Security	CKV_AZURE_18, CKV_AZURE_59	Storage account network rules, HTTPS only
   Encryption	CKV_AZURE_33, CKV_AZURE_43	Encryption at rest, TLS version
   Access Control	CKV_AZURE_36	Shared access key disabled
   Monitoring	CKV_AZURE_65	App Service detailed error messages

4. Notice that Checkov does not explicitly check for the 7 governance tags the way PSRule does. This is a key difference between the tools.

[!IMPORTANT] Checkov check IDs and descriptions may vary between versions. Use checkov --list to see all available checks for the arm framework.

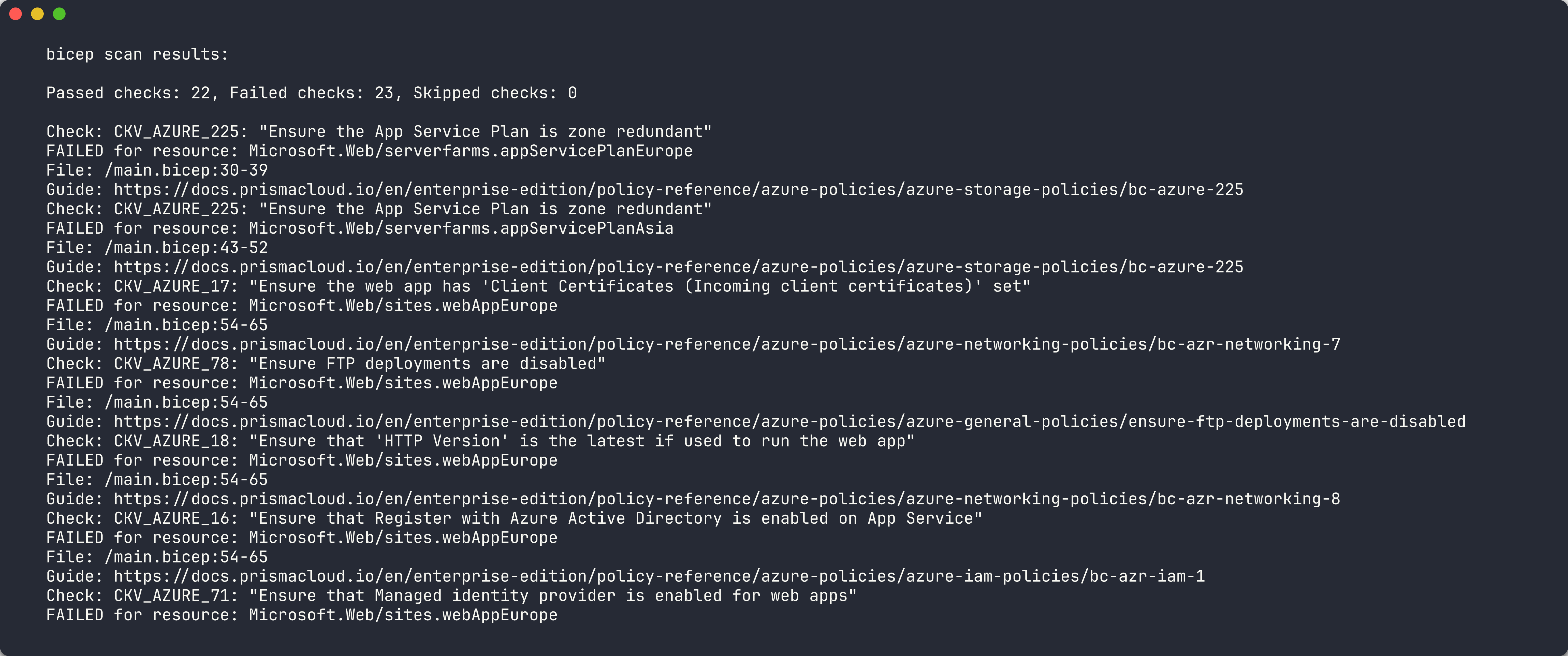

Exercise 3.3: Run Checkov on App 005

You will scan the redundant/expensive resources app and look for additional findings.

1. Run Checkov against app 005:

   checkov -d finops-demo-app-005/infra/ --output cli --output sarif --output-file-path console,reports/


2. Compare the output with the app 001 scan. App 005 has:
   • 2 App Service Plans deployed to non-approved regions (westus and westeurope)
   • GRS (geo-redundant) storage for a development workload
   • All 7 governance tags present
3. Check whether Checkov flags:
   • The duplicate App Service Plans
   • The GRS storage tier as overly expensive
   • Any region-related violations
4. Note which violations Checkov does detect versus those it misses. This gap motivates using multiple scanner tools.

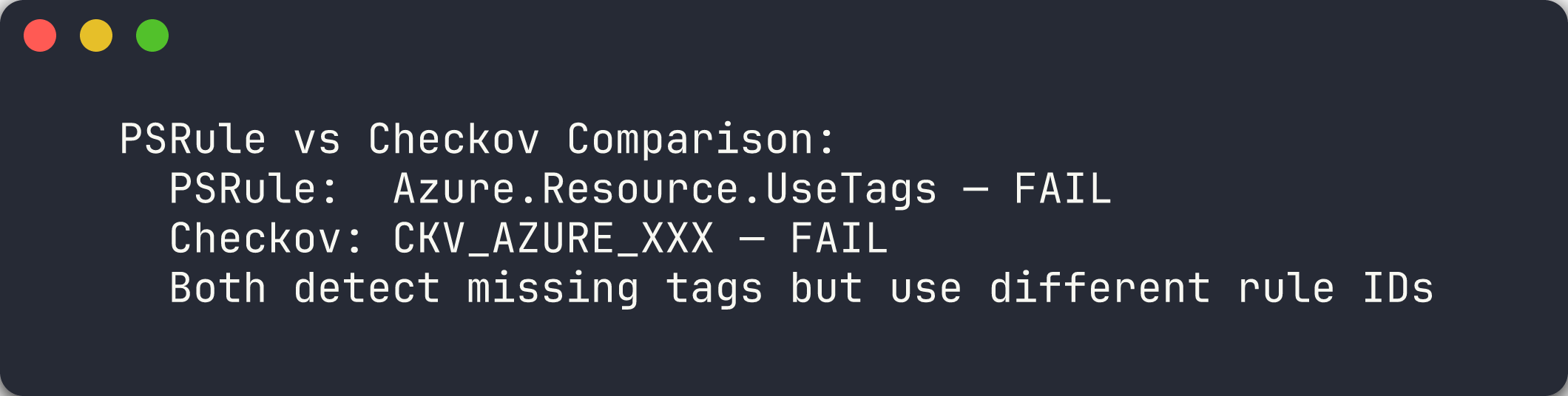

Exercise 3.4: Compare with PSRule

You will create a side-by-side comparison to understand the strengths of each tool.

1. If you completed Lab 02, open the PSRule SARIF results for apps 001 and 005.
2. If you have not completed Lab 02, run PSRule now (refer to Lab 02, Exercise 2.2 for the command).

3. Build a comparison table based on your findings:

   Aspect	PSRule	Checkov
   Focus Area	Azure best practices, tagging, naming	Security, compliance, CIS benchmarks
   Tag Checks	Explicit Azure.Resource.UseTags rule	No dedicated tag governance check
   Region Checks	AZURE_RESOURCE_ALLOWED_LOCATIONS config	Limited region awareness
   SKU Checks	Some rules for sizing best practices	Checks for specific service configurations
   Output Format	SARIF, CSV, JSON	SARIF, JSON, JUnit, CSV
   Language Support	Bicep (via expansion), ARM JSON	ARM JSON, Bicep, Terraform
   Custom Rules	PowerShell-based custom rules	Python-based custom checks

4. Summarise your key insight: PSRule excels at Azure-specific governance (tags, regions, naming) while Checkov excels at security and compliance (encryption, network rules, CIS benchmarks). Using both tools together provides comprehensive coverage.

[!TIP] In a production FinOps scanning pipeline, you run all scanner tools in parallel and merge the SARIF results. Labs 06 and 07 cover this exact pattern using GitHub Actions.

Verification Checkpoint

Before proceeding, verify:

• Checkov scan completed successfully against at least 2 demo apps
• SARIF output generated from Checkov in the reports/ directory
• Can explain at least 3 Checkov check IDs and what they detect
• Documented the overlap and gaps between Checkov and PSRule

Next Steps

Proceed to Lab 04 — Cloud Custodian: Runtime Resource Scanning.
