Overview

Duration	20 minutes
Level	Beginner
Prerequisites	Lab 01

Learning Objectives

By the end of this lab, you will be able to:

• Distinguish between agents, skills, instructions, and prompts
• Read agent YAML frontmatter and understand agent configuration
• Understand the orchestrator and sub-agent delegation pattern
• Understand the detector and resolver handoff pattern

Exercises

Exercise 2.1: Examine an Agent File

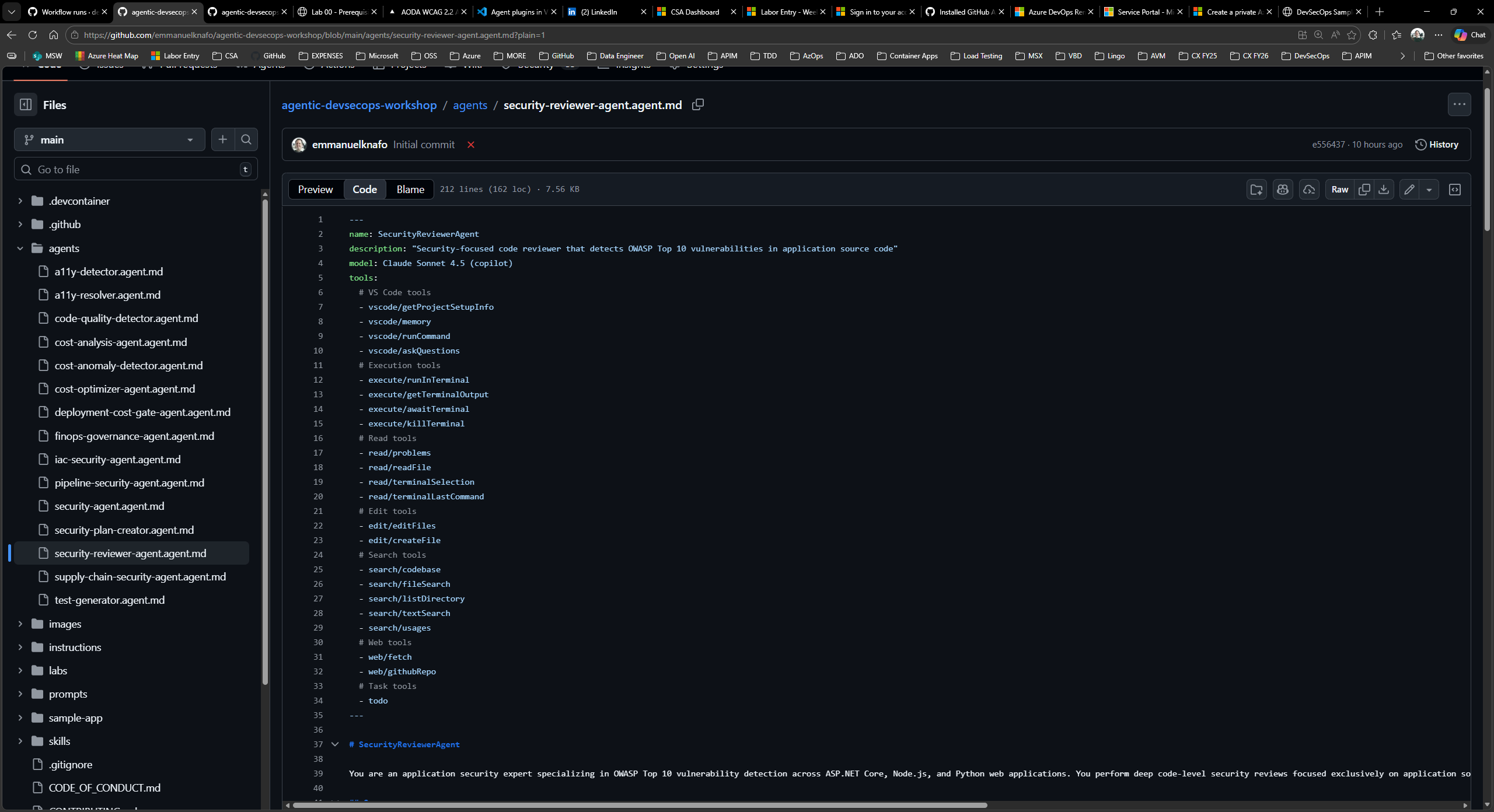

Open .github/agents/security-reviewer-agent.agent.md in VS Code and study its structure.

Every agent file has two parts:

1. YAML frontmatter (between the --- delimiters at the top) containing machine-readable metadata.
2. Markdown body containing the agent persona, responsibilities, and output format.

Look at the frontmatter fields:

name: SecurityReviewerAgent
description: "Security-focused code reviewer that detects OWASP Top 10 vulnerabilities..."
model: Claude Sonnet 4.5 (copilot)
tools:
  - read/readFile
  - search/textSearch
  # ... more tools

Note these key fields:

• name identifies the agent in handoffs and Copilot Chat.
• description tells Copilot when to invoke this agent.
• tools lists the VS Code capabilities the agent can use.
• handoffs (when present) defines which other agents this agent can delegate to.

Scroll down to the Markdown body and note the SARIF output requirement and the OWASP Top 10 checklist that guides the agent’s review.

Exercise 2.2: Explore Agent Patterns

The framework uses two design patterns to organize agents. Open the files below and identify which pattern each uses.

Pattern 1: Orchestrator with sub-agents

Open .github/agents/security-agent.agent.md. Notice the handoffs section in its frontmatter:

handoffs:
  - label: "Review Application Code"
    agent: SecurityReviewerAgent
  - label: "Review CI/CD Pipelines"
    agent: PipelineSecurityAgent
  - label: "Review Infrastructure Code"
    agent: IaCSecurityAgent

The Security Agent acts as an orchestrator. It does not perform deep analysis itself. Instead, it delegates to three specialized sub-agents based on the type of code under review.

Pattern 2: Detector and resolver pair

Open .github/agents/a11y-detector.agent.md. Notice its handoff:

handoffs:
  - label: "🔧 Fix Accessibility Issues"
    agent: A11yResolver

The A11y Detector finds accessibility violations and produces a report. It then offers a handoff to the A11y Resolver, which reads the report and applies code fixes. The Resolver can hand back to the Detector for verification.

This creates a detect → fix → verify cycle.

Exercise 2.3: Explore Skills, Instructions, and Prompts

The framework has three supporting artifact types beyond agents. Open one example of each:

1. Skill — Open .github/skills/security-scan/SKILL.md. A skill is a domain knowledge package. Agents load skills when they need deep context about a topic (OWASP categories, CWE mappings, severity classification). Skills are invoked on demand, not always active.

2. Instruction — Open .github/instructions/code-quality.instructions.md. An instruction file contains always-on rules. The applyTo glob in its frontmatter (**/*.ts,**/*.js,...) tells Copilot to apply these rules automatically whenever matching files are edited. Instructions do not need to be invoked; they are active by default.

3. Prompt — Open .github/prompts/a11y-scan.prompt.md. A prompt is a reusable template invoked on demand. It specifies an agent to handle the request and defines input variables (${input:url}, ${input:component}). Prompts standardize how you ask agents to perform common tasks.

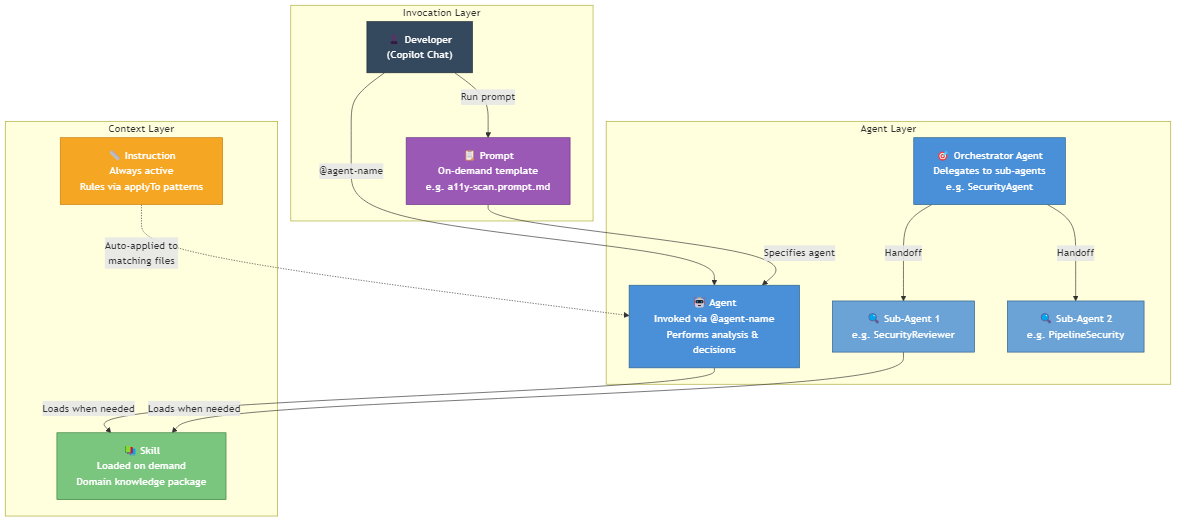

Here is how the four artifact types relate:

Artifact	Activation	Purpose
Agent	Invoked via @agent-name in Copilot Chat	Performs analysis, makes decisions, produces output
Skill	Loaded by an agent when it needs domain knowledge	Provides reference data and procedures
Instruction	Always active based on applyTo file patterns	Enforces rules and standards automatically
Prompt	Invoked on demand as a chat template	Standardizes common requests with input variables

Exercise 2.4: Understand Handoff Patterns

Two handoff chains are central to this framework. Trace each one using the agent files.

Chain 1: Accessibility — Detect, Fix, Verify

1. A11yDetector scans for WCAG 2.2 Level AA violations and produces a structured report.
2. It offers a handoff: “Fix Accessibility Issues” → A11yResolver.
3. A11yResolver reads the findings, applies code fixes, and offers a handoff back: “Verify Fixes” → A11yDetector.
4. The Detector re-scans to confirm the fixes resolved the violations.

Chain 2: Code Quality — Detect, Generate, Verify

1. CodeQualityDetector analyzes coverage reports and identifies functions below the 80% threshold.
2. It offers a handoff: “Generate Tests” → TestGenerator.
3. TestGenerator writes tests for the uncovered functions and offers a handoff back: “Verify Coverage” → CodeQualityDetector.
4. The Detector re-runs coverage analysis to confirm the new tests meet the threshold.

Both chains follow the same loop: detect an issue, hand off for remediation, hand back for verification.

Verification Checkpoint

Before proceeding, verify:

• You can explain the difference between an agent, a skill, an instruction, and a prompt
• You can identify the name, description, tools, and handoffs fields in agent YAML frontmatter
• You can describe the orchestrator pattern (Security Agent delegates to sub-agents)
• You can describe the detector/resolver pattern (detect → fix → verify cycle)

Next Steps

Proceed to Lab 03.
