Lab 07-ado: ADO YAML Pipelines for Accessibility Scanning


Duration 50 min
Level Advanced
Prerequisites Lab 06-ado
Platform Azure DevOps

Learning Objectives

By the end of this lab, you will be able to:

  • Understand ADO YAML pipeline syntax and compare it with GitHub Actions
  • Configure a multi-stage scan pipeline with matrix strategy
  • Use variable groups to manage pipeline configuration
  • Set up schedule triggers with cron syntax
  • Configure environment approvals and deployment gates
  • Create reusable pipeline templates with parameters
  • Link commits and PRs to ADO work items using AB# syntax

Exercises

Exercise 7.1: ADO YAML Pipeline Basics (10 min)

You will review the CI pipeline to understand ADO YAML pipeline syntax and compare it with GitHub Actions.

  1. Open .azuredevops/pipelines/ci.yml in your editor.

  2. Review the pipeline structure:

    trigger:
  branches:
    include:
      - main

pr:
  branches:
    include:
      - main

pool:
  vmImage: 'ubuntu-latest'

stages:
  - stage: Build
    jobs:
      - job: BuildAndTest
        steps:
          - checkout: self
          - task: NodeTool@0
            inputs:
              versionSpec: '20.x'
          - script: npm ci
            displayName: 'Install dependencies'
          - script: npm run build
            displayName: 'Build project'
          - script: npm test
            displayName: 'Run tests'

  3. Compare the syntax with GitHub Actions:

    Concept GitHub Actions ADO YAML Pipelines
    Trigger on: push trigger: branches: include:
    PR trigger on: pull_request pr: branches: include:
    Runner runs-on: ubuntu-latest pool: vmImage: 'ubuntu-latest'
    Hierarchy jobs → steps stages → jobs → steps
    Task uses: actions/setup-node@v4 task: NodeTool@0
    Script run: npm ci script: npm ci

    ci.yml pipeline structure

  4. ADO pipelines add a stages layer above jobs, enabling multi-stage workflows with approvals between stages.

Exercise 7.2: Multi-Stage Scan Pipeline (10 min)

You will review the scan pipeline that uses a matrix strategy to scan multiple demo apps.

  1. Open .azuredevops/pipelines/a11y-scan.yml in your editor.

  2. Review the matrix strategy:

    stages:
  - stage: Scan
    jobs:
      - job: ScanApps
        strategy:
          matrix:
            App001:
              APP_NAME: 'a11y-demo-app-001'
              APP_URL: 'https://a11y-demo-app-001.azurewebsites.net'
            App002:
              APP_NAME: 'a11y-demo-app-002'
              APP_URL: 'https://a11y-demo-app-002.azurewebsites.net'
            App003:
              APP_NAME: 'a11y-demo-app-003'
              APP_URL: 'https://a11y-demo-app-003.azurewebsites.net'
        steps:
          - script: |
              npx ts-node src/cli/commands/scan.ts \
                --url $(APP_URL) \
                --format sarif \
                --output $(Build.ArtifactStagingDirectory)/$(APP_NAME).sarif
            displayName: 'Scan $(APP_NAME)'

          - task: AdvancedSecurity-Publish@1
            inputs:
              sarifInputFilePath: '$(Build.ArtifactStagingDirectory)/$(APP_NAME).sarif'
              category: 'accessibility'

  3. Compare the matrix syntax:

    Aspect GitHub Actions ADO YAML Pipelines
    Declaration strategy: matrix: app: [001, 002] strategy: matrix: App001: ...
    Variable access $ $(APP_NAME)
    Named entries Implicit from array values Explicit named keys (App001, App002)

    a11y-scan.yml matrix strategy

  4. Each matrix entry runs as a parallel job, scanning one demo app and publishing its SARIF results to Advanced Security.

Exercise 7.3: Variable Groups for Configuration (5 min)

You will review the variable groups that centralize pipeline configuration.

  1. Navigate to Pipelines → Library in the ADO portal.

  2. Review the 4 variable groups used by the scan pipelines:

    Variable Group Purpose Key Variables
    common Shared settings NODE_VERSION, PLAYWRIGHT_VERSION
    oidc Azure OIDC credentials AZURE_CLIENT_ID, AZURE_TENANT_ID, AZURE_SUBSCRIPTION_ID
    scanner Scanner configuration SCANNER_THRESHOLD, SARIF_OUTPUT_DIR
    app-urls Demo app URLs APP_URL_001 through APP_URL_005

    Variable groups in ADO portal

  3. Variable groups are referenced in pipeline YAML using the variables section:

    variables:
  - group: common
  - group: scanner
  - group: app-urls

  4. Variable groups allow you to manage shared configuration in one place. Updating a variable group value automatically applies to all pipelines that reference it.

Exercise 7.4: Schedule Triggers with Cron (5 min)

You will review how ADO pipelines use cron-based schedule triggers for automated recurring scans.

  1. Open .azuredevops/pipelines/scan-and-store.yml in your editor.

  2. Review the schedule trigger syntax:

    schedules:
  - cron: '0 6 * * 1'
    displayName: 'Weekly Monday 06:00 UTC'
    branches:
      include:
        - main
    always: true

  3. Understand the cron fields:

    Field Value Meaning
    Minute 0 At minute 0
    Hour 6 At 06:00 UTC
    Day of month * Every day
    Month * Every month
    Day of week 1 Monday only

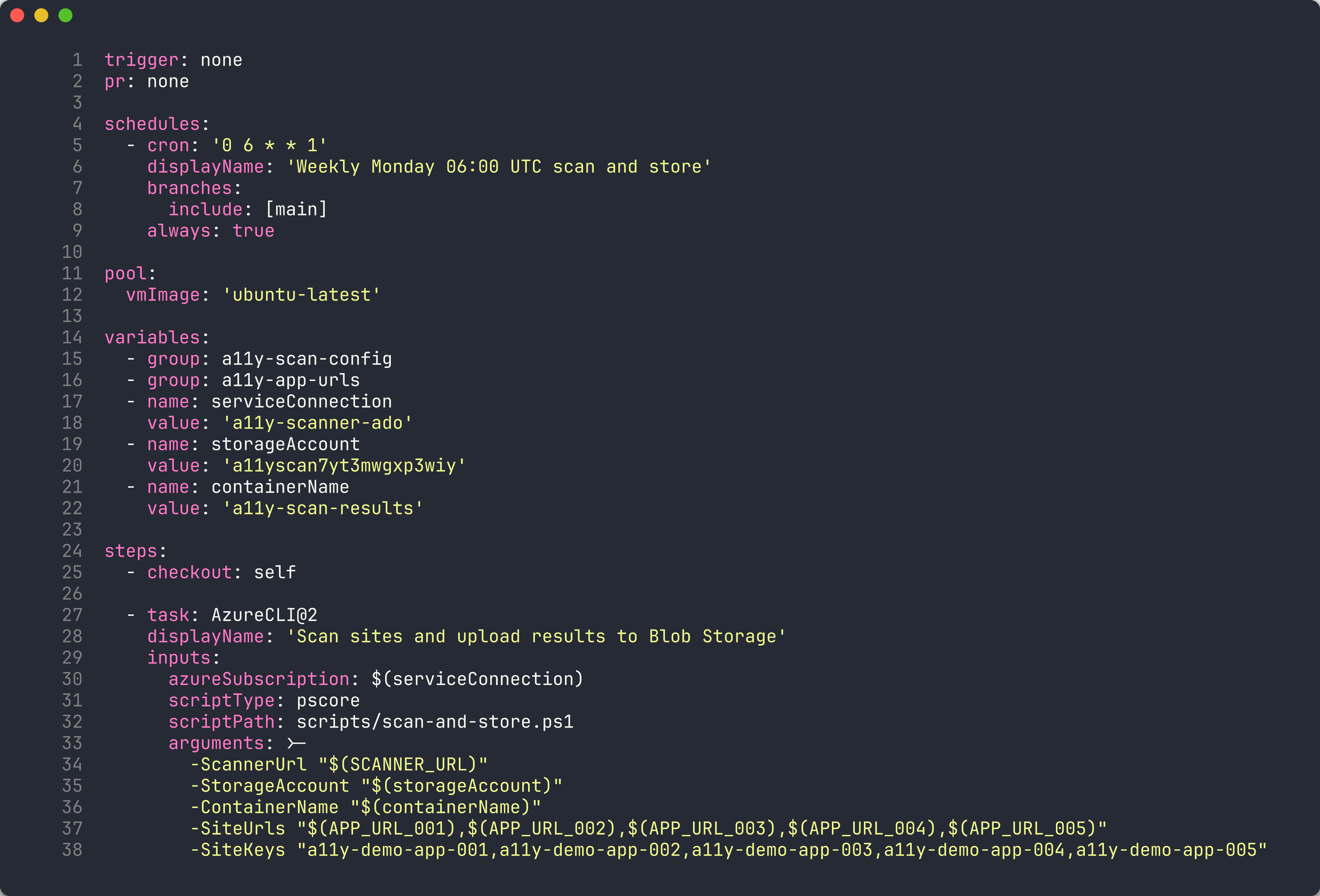

    Schedule trigger YAML

  4. The always: true setting ensures the pipeline runs even when there are no code changes since the last run. This is important for scheduled accessibility scans — you want to detect regressions regardless of code activity.

Exercise 7.5: Environment Approvals and Gates (5 min)

You will review how ADO environments enforce approval workflows before deployment.

  1. Navigate to Pipelines → Environments in the ADO portal.

  2. Review the configured environments:

    Environment Purpose Approval Required
    production Production deployment gate Yes — requires manual approval
    a11y-demo-app-001 Per-app deployment No — auto-approved
    a11y-demo-app-002 Per-app deployment No — auto-approved

    Environments list in ADO

  3. Open the production environment and review the approval gate configuration:
    • Approvers — One or more team members who must approve before deployment proceeds
    • Timeout — Maximum wait time for approval before the pipeline fails
    • Instructions — Guidance displayed to approvers

    Approval gate configuration

  4. In pipeline YAML, environments are referenced in deployment jobs:

    - stage: Deploy
  jobs:
    - deployment: DeployToProduction
      environment: 'production'
      strategy:
        runOnce:
          deploy:
            steps:
              - script: echo "Deploying..."
  5. When the pipeline reaches the production environment, execution pauses until an approver clicks Approve. This ensures human review before production changes.

Exercise 7.6: Pipeline Templates for Reuse (10 min)

You will review the pipeline templates that enable reuse across multiple pipelines.

  1. Open the .azuredevops/pipelines/templates/ directory in your editor.

  2. Review the 5 templates:

    Template Purpose
    install-deps.yml Install Node.js, npm dependencies, and Playwright browsers
    a11y-scan-job.yml Run accessibility scan against a single URL and publish SARIF
    deploy-app-stage.yml Deploy a demo app to Azure App Service
    publish-results.yml Upload scan results as pipeline artifacts
    notify-teams.yml Send notification to Microsoft Teams channel

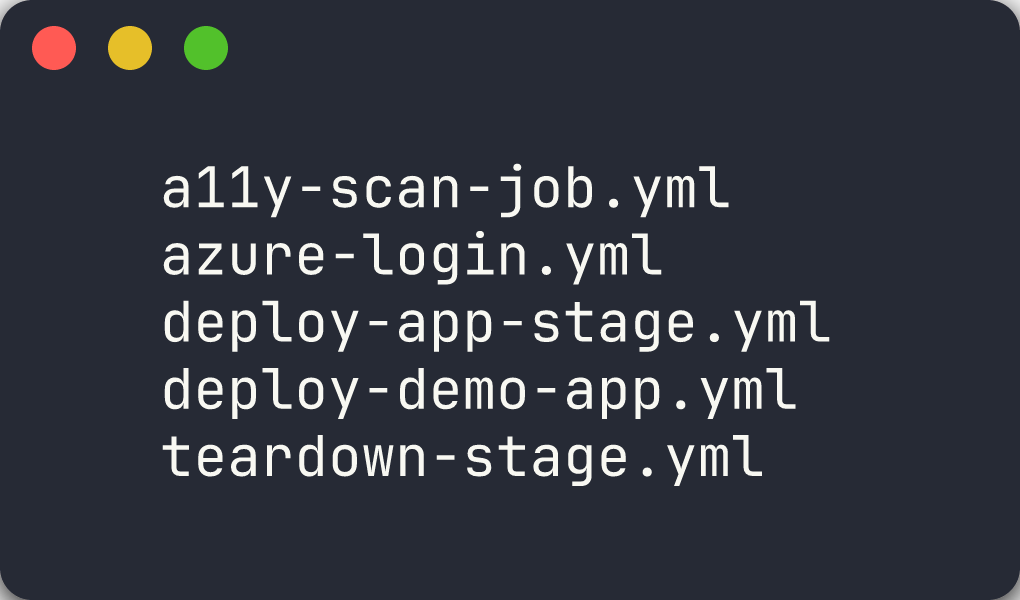

    Templates directory listing

  3. Review deploy-app-stage.yml to understand template parameters:

    parameters:
  - name: appName
    type: string
  - name: resourceGroup
    type: string
  - name: environment
    type: string
    default: 'production'

stages:
  - stage: Deploy_$
    jobs:
      - deployment: Deploy
        environment: $
        strategy:
          runOnce:
            deploy:
              steps:
                - task: AzureWebApp@1
                  inputs:
                    appName: $
                    resourceGroupName: $

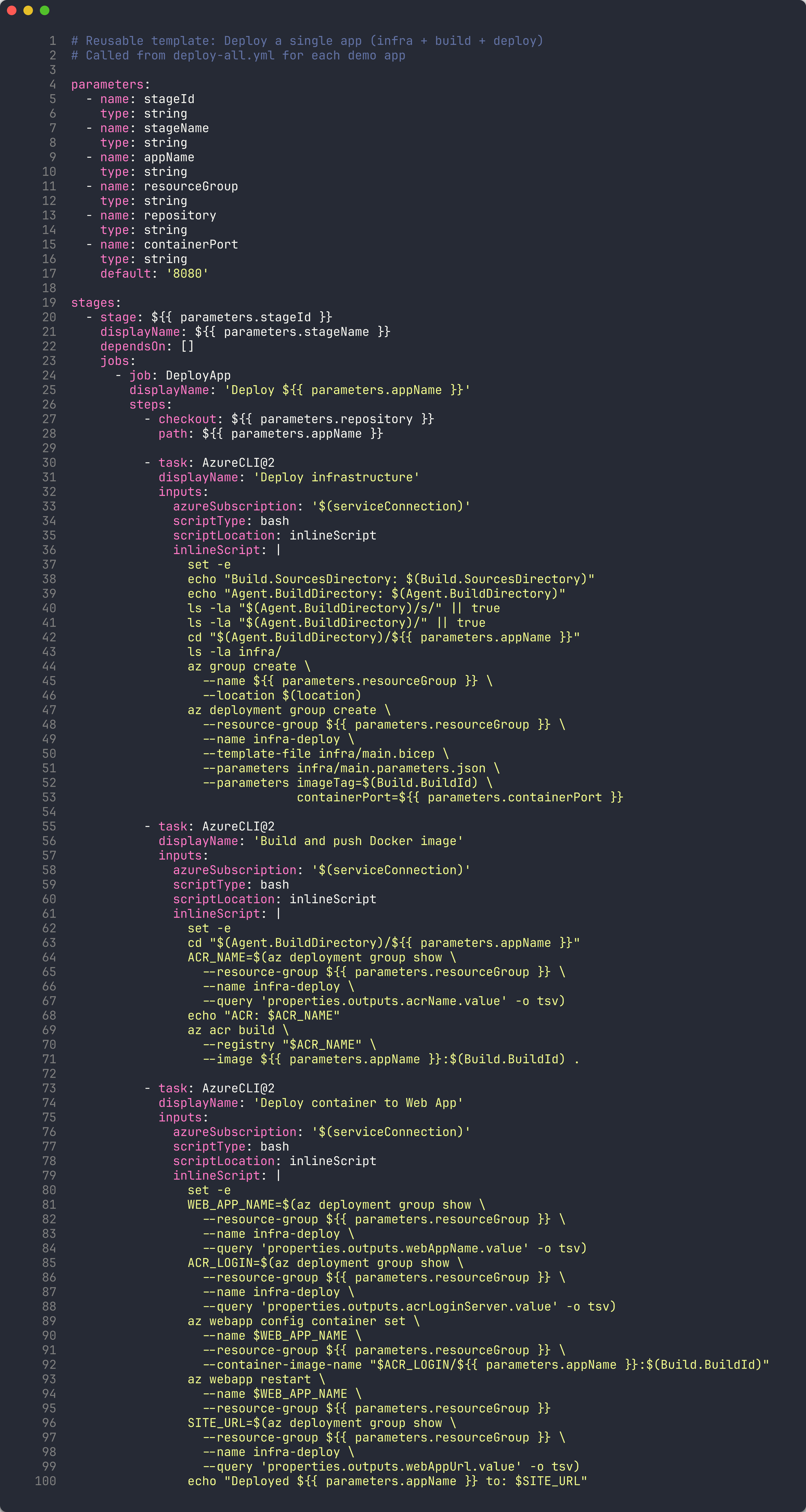

    Template parameters YAML

  4. Templates are consumed using the template keyword:

    stages:
  - template: templates/deploy-app-stage.yml
    parameters:
      appName: 'a11y-demo-app-001'
      resourceGroup: 'rg-a11y-demo-001'
      environment: 'production'

  5. The extends pattern provides even stronger governance. A pipeline that uses extends must inherit from an approved template:

    extends:
  template: templates/secure-pipeline.yml
  parameters:
    appName: 'a11y-demo-app-001'

    This ensures all pipelines in the project follow organizational security and compliance standards.

Exercise 7.7: AB# Work Item Linking (5 min)

You will review how ADO work items are linked to commits and pull requests using the AB# syntax.

  1. Review the work item linking convention from the project’s workflow instructions. Every commit message includes the ADO work item ID:

    feat: add axe-core scanning configuration AB#1234
fix: correct SARIF severity mapping AB#1235
  2. The AB# prefix tells GitHub and Azure DevOps to automatically link the commit to the corresponding work item. This creates bidirectional traceability:
    • From the commit you can navigate to the work item
    • From the work item you can see all related commits

  3. To auto-close a work item when a PR merges, use Fixes AB# in the commit message or PR description:

    feat: add axe-core scanning configuration Fixes AB#1234

    AB# work item linked from commit

  4. Review the work item hierarchy used in this project:

    Epic
 └── Feature
      ├── User Story
      └── Bug

    Every commit traces back to a User Story or Bug, which belongs to a Feature, which belongs to an Epic. This hierarchy is defined in the project’s ADO organization (MngEnvMCAP675646) under the AODA WCAG Compliance project.

  5. The branching convention reinforces this traceability:

    feature/{work-item-id}-short-description

    For example: feature/1234-axe-core-config

Verification Checkpoint

Before completing the lab, verify:

  • Reviewed ADO YAML pipeline syntax and understand stages/jobs/steps hierarchy
  • Understand the matrix strategy for multi-app scanning
  • Reviewed variable groups and their role in pipeline configuration
  • Understand cron schedule syntax for automated recurring scans
  • Reviewed environment approvals and deployment gates
  • Understand pipeline templates and the extends pattern
  • Know how to use AB# syntax to link commits to ADO work items

Congratulations

You have completed the ADO track of the Accessibility Scan Workshop (Labs 00–05, 06-ado, 07-ado). Here is a summary of what you learned:

Lab What You Learned
Lab 00 Set up the development environment with Node.js, Docker, and scanner tools
Lab 01 Explored the 5 demo apps and mapped their violations to WCAG POUR principles
Lab 02 Ran axe-core scans via web UI, CLI, and API to detect WCAG violations
Lab 03 Used IBM Equal Access for broader policy-based scanning and compared with axe-core
Lab 04 Extended coverage with custom Playwright checks for issues automated engines miss
Lab 05 Generated SARIF output and uploaded findings to the GitHub Security tab
Lab 06-ado Enabled ADO Advanced Security and published SARIF results via pipeline
Lab 07-ado Built ADO YAML pipelines with templates, approvals, and work item linking

You now have the skills to implement a complete accessibility scanning platform on Azure DevOps that:

  • Scans web pages using multiple engines (axe-core, IBM Equal Access, custom Playwright checks)
  • Produces unified SARIF output for all scan engines
  • Integrates with ADO Advanced Security for centralized alert management
  • Uses multi-stage pipelines with matrix strategy for parallel scanning
  • Manages configuration through variable groups
  • Enforces deployment gates with environment approvals
  • Reuses pipeline logic through templates and the extends pattern
  • Links work items to commits and PRs using AB# syntax for full traceability
  • Runs automatically on schedule and on-demand via ADO Pipelines
