Lab 04: Custom Playwright Checks — Manual Inspection Automation

Duration	35 minutes
Level	Intermediate
Prerequisites	Lab 01

Learning Objectives

By the end of this lab, you will be able to:

• Explain why custom checks are needed beyond axe-core and IBM Equal Access
• Review existing custom checks in the scanner source code
• Understand how Playwright tests keyboard navigation and focus management
• Write a new custom check to detect deprecated HTML elements
• Run the updated scanner and verify the new check produces findings

Exercises

Exercise 4.1: Review Custom Checks Source

Automated engines like axe-core cannot catch every accessibility issue. The scanner includes custom Playwright-based checks for issues that require DOM interaction or visual inspection.

1. Open the custom checks source file in your editor:

   src/lib/scanner/custom-checks.ts


2. Review the existing checks:

   Check Function	What It Detects	WCAG Criterion
   checkAmbiguousLinkText	Links with vague text like “click here,” “read more,” or “learn more”	2.4.4 Link Purpose
   checkAriaCurrentPage	Navigation elements missing aria-current="page" on the active link	1.3.1 Info and Relationships
   checkEmphasisStrongSemantics	Presentational use of <b> / <i> instead of semantic <strong> / <em>	1.3.1 Info and Relationships
   checkDiscountPriceAccessibility	Prices marked with strikethrough (<del> / <s>) missing screen reader context	1.1.1 Non-text Content
   checkStickyElementOverlap	Sticky headers or footers that could overlap content when scrolling	2.4.11 Focus Not Obscured

3. Note the check function pattern. Each function:

   • Takes a Playwright Page object
   • Returns a CustomCheckResult or null (null if no violation found)
   • Uses page.evaluate() to query the DOM
   • Includes impact level, help text, and affected element selectors

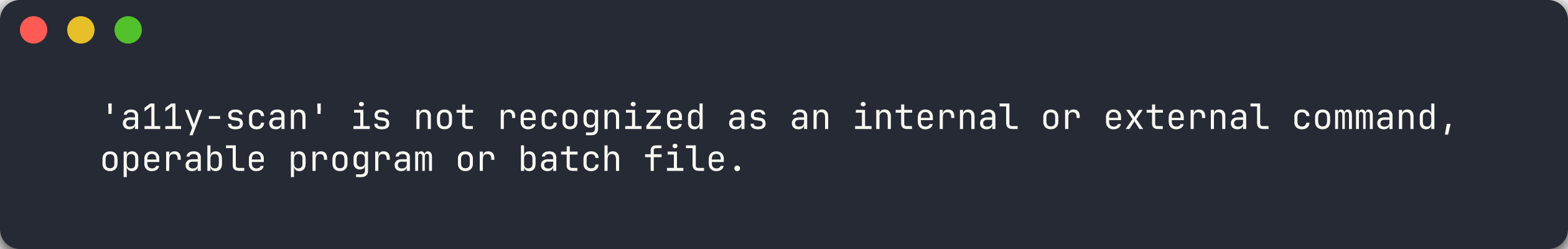

Exercise 4.2: Run Scanner with Custom Checks

You will run a scan that includes custom checks and examine the additional findings.

1. Scan demo app 001 with the scanner (custom checks run automatically):

   npx ts-node src/cli/commands/scan.ts --url http://localhost:8001 --format json --output results/demo-001-custom.json


2. Open results/demo-001-custom.json and search for findings with the custom- prefix in their rule IDs. These are the custom check results.

3. You should see findings for:

   • Ambiguous link text — Demo app 001 uses “click here” links throughout
   • Missing aria-current — The navigation bar does not mark the active page



[!NOTE] Custom checks complement automated engines. axe-core checks link-name (whether a link has accessible text at all), while the custom check checkAmbiguousLinkText goes further to flag links that have text but the text is not descriptive enough.

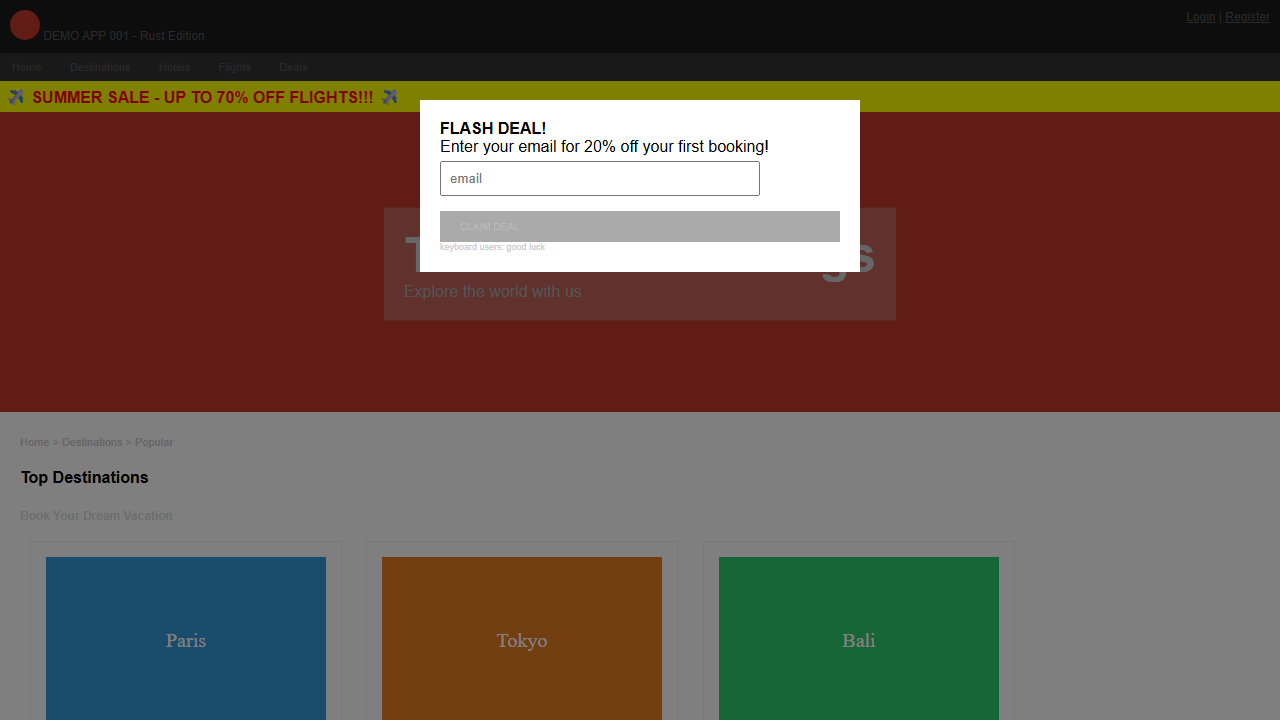

Exercise 4.3: Understand Keyboard Navigation Testing

Many accessibility issues only appear during keyboard interaction. You will review how the scanner tests keyboard accessibility.

1. The demo apps include a deliberate keyboard trap. Demo app 001 contains this JavaScript:

   document.addEventListener('keydown', function(e) {
     if (e.key === 'Tab') { }
   });


   This intercepts the Tab key and does nothing, trapping keyboard users on the page.

2. Additionally, all interactive elements (buttons) are implemented as <div> elements with onclick handlers instead of <button> elements:

   <!-- Inaccessible -->
   <div class="btn" onclick="bookFlight()">Book Now</div>

   <!-- Accessible -->
   <button onclick="bookFlight()">Book Now</button>


3. The scanner’s custom checks can detect some keyboard issues by:

   • Evaluating whether interactive elements have proper roles
   • Checking for tabindex on non-interactive elements used as controls
   • Detecting event listeners that suppress default keyboard behaviour



[!TIP] For manual keyboard testing, press Tab to move forward, Shift+Tab to move backward, Enter to activate buttons and links, and Space to toggle checkboxes and buttons. Every interactive element should be reachable and operable via keyboard alone.

Exercise 4.4: Write a New Custom Check

You will create a custom check to detect <marquee> elements, which are deprecated and cause WCAG 2.3.1 violations.

1. Open src/lib/scanner/custom-checks.ts in your editor.

2. Add a new check function before the runCustomChecks function:

   async function checkDeprecatedMarquee(page: Page): Promise<CustomCheckResult | null> {
     const marquees = await page.evaluate(() => {
       const elements = document.querySelectorAll('marquee');
       if (elements.length === 0) return null;
       return Array.from(elements).map((el) => ({
         selector: 'marquee',
         html: el.outerHTML.substring(0, 200),
       }));
     });

     if (!marquees) return null;

     return {
       id: 'custom-deprecated-marquee',
       impact: 'serious',
       description: 'Page contains deprecated <marquee> elements that cause distracting motion',
       help: 'Remove <marquee> elements and use CSS animations with prefers-reduced-motion support instead',
       helpUrl: 'https://www.w3.org/WAI/WCAG22/Understanding/pause-stop-hide.html',
       wcag: ['2.2.2', '2.3.1'],
       nodes: marquees.map((m) => ({
         target: [m.selector],
         html: m.html,
       })),
     };
   }




3. Add the new check to the runCustomChecks function’s check array:

   const checks = [
     checkAmbiguousLinkText,
     checkAriaCurrentPage,
     checkEmphasisStrongSemantics,
     checkDiscountPriceAccessibility,
     checkStickyElementOverlap,
     checkDeprecatedMarquee,  // Add this line
   ];


4. Save the file.

Exercise 4.5: Run Updated Scanner

You will verify that your new custom check detects the <marquee> element in demo app 001.

1. Run the scanner against demo app 001:

   npx ts-node src/cli/commands/scan.ts --url http://localhost:8001 --format json --output results/demo-001-marquee.json


2. Search the output for custom-deprecated-marquee:

   grep "custom-deprecated-marquee" results/demo-001-marquee.json


   On PowerShell:

   Select-String -Path results/demo-001-marquee.json -Pattern "custom-deprecated-marquee"


3. The check should detect the <marquee> element that demo app 001 uses for its scrolling banner.



[!WARNING] Revert your changes to custom-checks.ts after this exercise if you do not want to keep the custom check, or commit the change to your fork. The remaining labs use the original scanner code.

Verification Checkpoint

Before proceeding, verify:

• Reviewed the existing custom checks in custom-checks.ts
• Ran a scan and identified custom check findings in the output
• Can explain why custom checks complement automated engines
• Successfully wrote and tested a new custom check for <marquee> elements
• New check produced findings when scanning demo app 001

Next Steps

Proceed to Lab 05: SARIF Output and GitHub Security Tab.
