Lab 02: axe-core — Automated Accessibility Testing

Duration	35 minutes
Level	Intermediate
Prerequisites	Lab 01

Learning Objectives

By the end of this lab, you will be able to:

• Scan a web page for accessibility violations using the scanner web UI
• Interpret scan results including violations, passes, incomplete checks, and impact levels
• Run accessibility scans via the CLI with JSON output
• Call the scanner API programmatically to scan a URL
• Compare scan results across multiple demo apps

Exercises

Exercise 2.1: Scan via Web UI

You will use the scanner’s web interface to run your first automated accessibility scan.

1. Ensure the scanner is running at http://localhost:3000 (started in Lab 00, Exercise 0.5).

2. Ensure demo app 001 is running at http://localhost:8001 (started in Lab 01, Exercise 1.2).

3. Open the scanner at http://localhost:3000 in your browser.

4. Enter the demo app URL in the scan form:

   http://host.docker.internal:8001


   [!NOTE] If your scanner is running via Docker, use http://host.docker.internal:8001 to reach the demo app. If both are running natively (not in Docker), use http://localhost:8001.

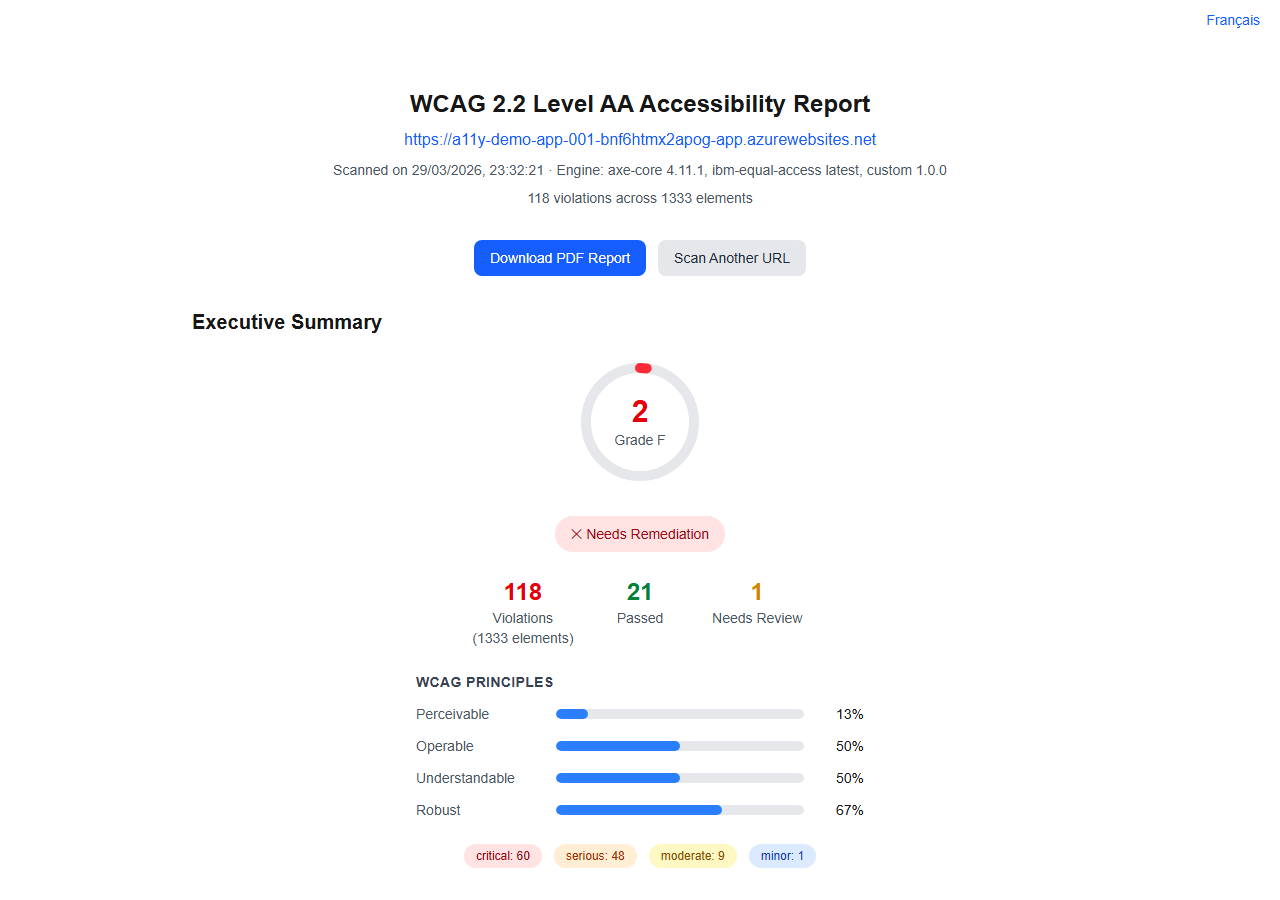

5. Click Scan and wait for the results to appear.



Exercise 2.2: Interpret Scan Results

You will learn how to read and understand the scan output.

1. Review the scan results page. The scanner displays results in several categories:

   Category	Description
   Violations	Rules that failed — confirmed accessibility issues
   Passes	Rules that passed — no issues found
   Incomplete	Rules that require manual review
   Inapplicable	Rules that do not apply to the page content

2. Focus on the Violations section. Each violation includes:

   • Rule ID — The axe-core rule identifier (for example, image-alt, color-contrast)
   • Impact — Severity level: critical, serious, moderate, or minor
   • Description — What the rule checks for
   • WCAG criteria — The WCAG success criterion the rule maps to
   • Affected elements — HTML elements that triggered the violation

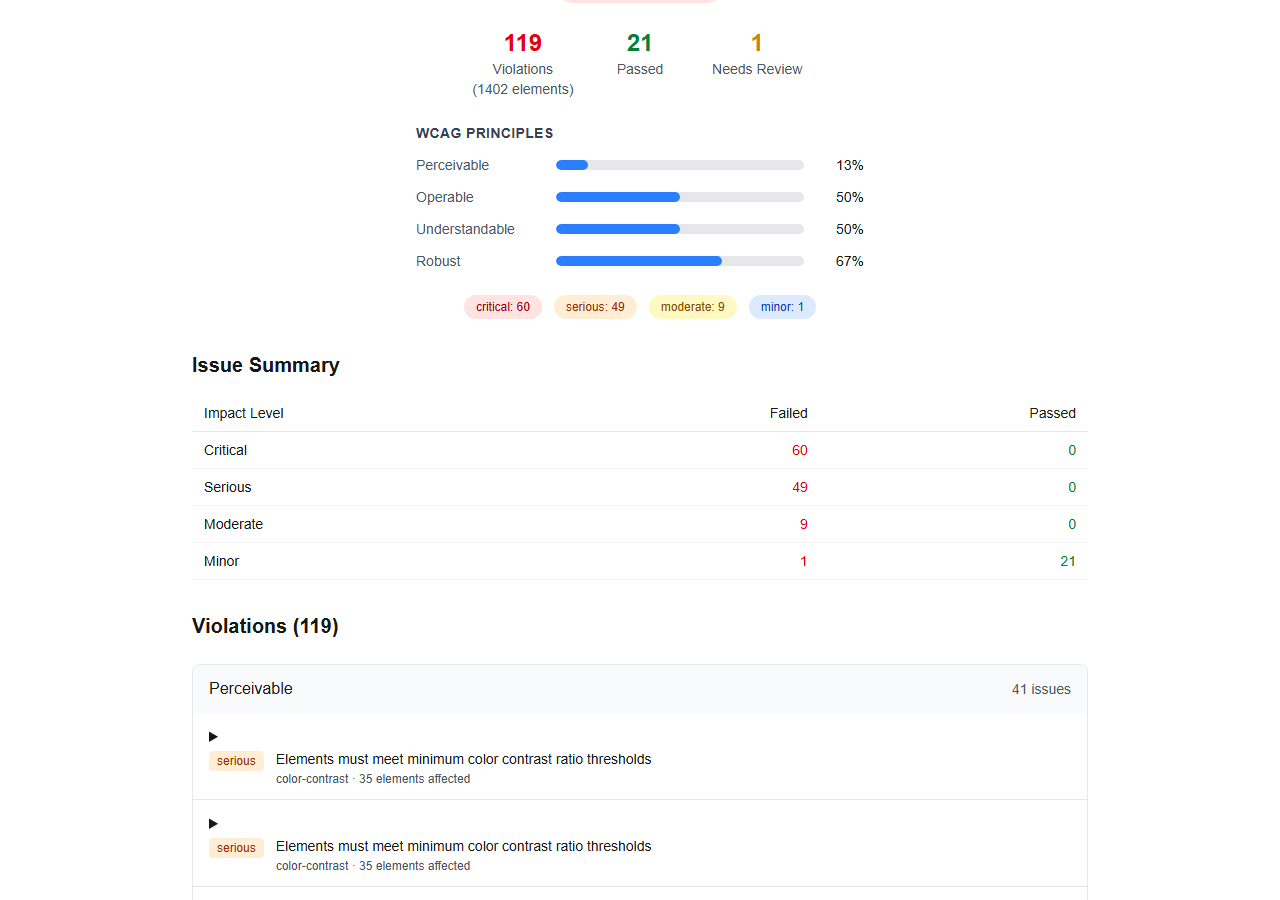

3. Click on a specific violation to expand its details. Note the CSS selector and HTML snippet for each affected element.



4. Review the impact level distribution. Demo app 001 typically produces:

   • Critical: Missing lang attribute, keyboard traps
   • Serious: Missing alt text, poor contrast, missing form labels
   • Moderate: Heading hierarchy, missing table headers
   • Minor: Deprecated elements

Exercise 2.3: Scan via CLI

You will run the same scan from the command line with JSON output.

1. Open a terminal in the scanner repository root.

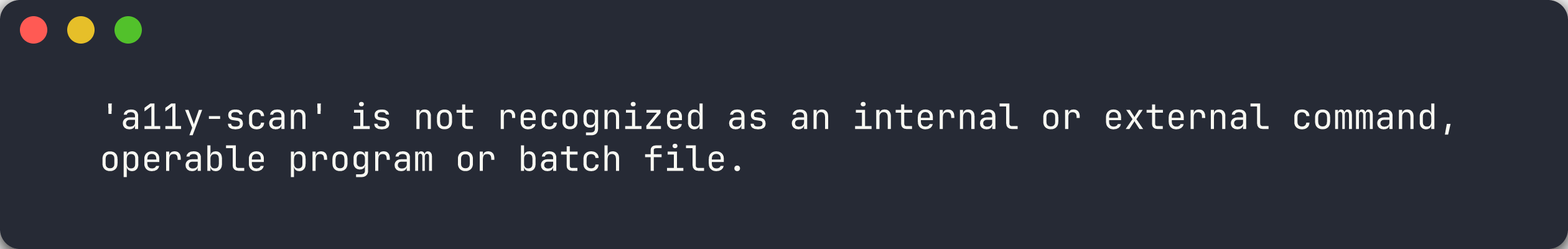

2. Run the CLI scan command:

   npx ts-node src/cli/commands/scan.ts --url http://localhost:8001 --format json


3. Review the JSON output in your terminal. The structure includes:

   {
     "url": "http://localhost:8001",
     "score": 25,
     "violations": [...],
     "passes": [...],
     "incomplete": [...]
   }


4. Save the output to a file for later analysis:

   npx ts-node src/cli/commands/scan.ts --url http://localhost:8001 --format json --output results/demo-001.json




[!TIP] The --format flag supports json, sarif, and junit. You will explore SARIF output in detail in Lab 05.

Exercise 2.4: Scan via API

You will call the scanner’s REST API to demonstrate programmatic scanning.

1. With the scanner running at http://localhost:3000, send a POST request:

   curl -X POST http://localhost:3000/api/scan \
     -H "Content-Type: application/json" \
     -d '{"url":"http://localhost:8001"}'


   On PowerShell:

   Invoke-RestMethod -Uri "http://localhost:3000/api/scan" `
     -Method Post `
     -ContentType "application/json" `
     -Body '{"url":"http://localhost:8001"}'


2. The API returns a JSON response with the same structure as the CLI output.



3. Note the score field in the response. This is the accessibility score on a 0–100 scale that the scanner computes based on the violation-to-pass ratio.

Exercise 2.5: Compare Results Across Demo Apps

You will scan multiple demo apps and compare their violation counts.

1. Start the remaining demo apps if they are not already running:

   docker build -t a11y-demo-app-002 ./a11y-demo-app-002
   docker run -d --name a11y-002 -p 8002:8080 a11y-demo-app-002

   docker build -t a11y-demo-app-003 ./a11y-demo-app-003
   docker run -d --name a11y-003 -p 8003:8080 a11y-demo-app-003

   docker build -t a11y-demo-app-004 ./a11y-demo-app-004
   docker run -d --name a11y-004 -p 8004:8080 a11y-demo-app-004

   docker build -t a11y-demo-app-005 ./a11y-demo-app-005
   docker run -d --name a11y-005 -p 8005:8080 a11y-demo-app-005


2. Scan each app via the CLI and compare the results:

   npx ts-node src/cli/commands/scan.ts --url http://localhost:8001 --format json --output results/demo-001.json
   npx ts-node src/cli/commands/scan.ts --url http://localhost:8002 --format json --output results/demo-002.json
   npx ts-node src/cli/commands/scan.ts --url http://localhost:8003 --format json --output results/demo-003.json
   npx ts-node src/cli/commands/scan.ts --url http://localhost:8004 --format json --output results/demo-004.json
   npx ts-node src/cli/commands/scan.ts --url http://localhost:8005 --format json --output results/demo-005.json


3. Compare the violation counts. Expected pattern:

   App	Expected Score	Notable Differences
   001	Low (~25)	Baseline violations
   002	Lowest (~20)	Additional tab interface and image map violations
   003	Low (~25)	Similar to 001
   004	Low (~25)	Similar to 001
   005	Low (~25)	Similar to 001



[!NOTE] App 002 (C# / ASP.NET) typically has the most violations because it includes an inaccessible custom tab interface and an image map without alt text, in addition to all the violations shared by the other apps.

Verification Checkpoint

Before proceeding, verify:

• Scanned demo app 001 via the web UI and reviewed the results
• Can explain the difference between violations, passes, and incomplete checks
• Successfully ran a CLI scan with JSON output saved to a file
• Called the scanner API and received a JSON response
• Scanned at least 2 demo apps and compared their violation counts

Next Steps

Proceed to Lab 03: IBM Equal Access — Comprehensive Policy Scanning.
