Lab 01: Explore the Demo Apps and WCAG Violations

Duration	25 minutes
Level	Beginner
Prerequisites	Lab 00

Learning Objectives

By the end of this lab, you will be able to:

• Describe the 5 demo apps, their tech stacks, and violation themes
• Build and run a demo app locally using Docker
• Identify visible accessibility violations in a web page
• Map violations to the WCAG 2.2 POUR principles (Perceivable, Operable, Understandable, Robust)

Exercises

Exercise 1.1: Review the Demo App Matrix

The scanner repository includes 5 deliberately inaccessible web applications, each built with a different technology stack. All 5 apps share the same core WCAG violations but use different themes.

1. Review the demo app matrix:

   App	Language	Framework	Theme	Port	Violation Categories
   001	Rust	Actix-web	Travel Booking	8001	Missing lang, no title, popup trap, keyboard trap, no focus indicator, poor contrast, heading hierarchy, marquee/blink, no labels, no table headers, ambiguous links
   002	C#	ASP.NET 8	E-Commerce Store	8002	All of 001 + inaccessible tab interface, inaccessible image map
   003	Java	Spring Boot	Online Learning	8003	Same core violations as 001 with education-themed content
   004	Python	Flask	Recipe Site	8004	Same core violations as 001 with recipe-themed content
   005	Go	net/http	Fitness Tracker	8005	Same core violations as 001 with fitness-themed content

2. Note that all 5 apps intentionally include 15+ WCAG violation categories. These are your test targets throughout the workshop.

Exercise 1.2: Build and Run Demo App 001

You will build and run the first demo app locally to explore its violations.

1. Build the Docker image for demo app 001:

   docker build -t a11y-demo-app-001 ./a11y-demo-app-001


2. Run the container:

   docker run -d --name a11y-001 -p 8001:8080 a11y-demo-app-001


3. Open your browser and navigate to:

   http://localhost:8001


4. You should see the TravelNow Bookings travel site.



[!TIP] To build and run additional demo apps, repeat the pattern with the appropriate directory and port:

docker build -t a11y-demo-app-002 ./a11y-demo-app-002
docker run -d --name a11y-002 -p 8002:8080 a11y-demo-app-002

Exercise 1.3: Identify Visible Violations

You will explore demo app 001 and identify accessibility violations you can see without any tools.

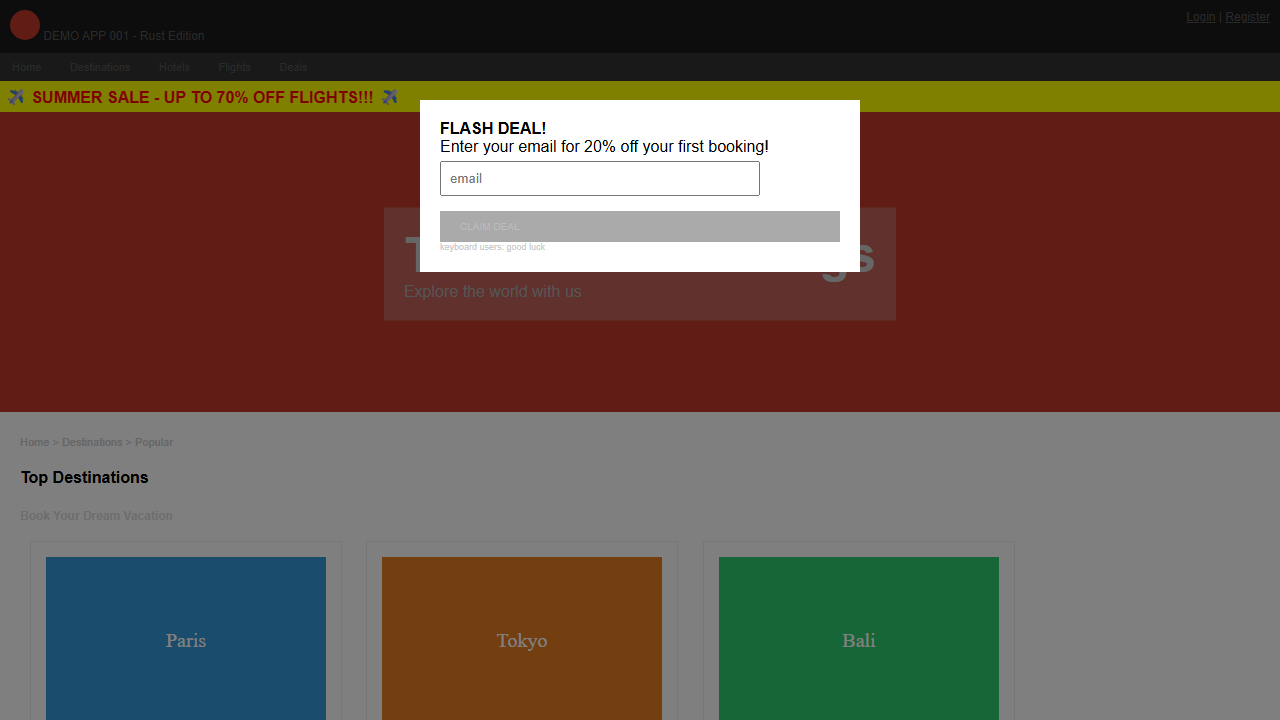

1. When the page loads, notice the popup modal that appears. Try pressing Tab or Escape — the modal cannot be closed with the keyboard.



2. Close the modal by clicking the X button with your mouse. Then observe the following:

   • Missing alt text — Images of destinations (Paris, Tokyo, Bali) have no alternative text. Hover over them and notice no tooltip appears.
   • Poor color contrast — Text throughout the page uses light colours on dark backgrounds (for example, grey text on dark grey sections).
   • Heading hierarchy — The page jumps from <h4> to <h1> to <h6>, violating logical heading order.
   • Tiny text — Several elements use 9px or 11px font sizes, making them difficult to read.
   • Marquee element — A scrolling <marquee> banner creates distracting motion.
   • “Click here” links — Links use vague text like “click here” instead of describing their destination.
3. Open Chrome DevTools (F12) and run a Lighthouse Accessibility Audit:
   • Navigate to the Lighthouse tab
   • Select Accessibility as the category
   • Click Analyze page load



4. Review the Lighthouse score. Demo app 001 typically scores below 50 due to the volume of violations.

Exercise 1.4: Map Violations to WCAG Principles

WCAG 2.2 organizes accessibility requirements into 4 principles known as POUR. You will map the violations you found to these principles.

1. Review the POUR principles and their demo app examples:

   Principle	Description	Demo App Examples
   Perceivable	Information must be presentable in ways users can perceive	Missing alt text (1.1.1), poor contrast (1.4.3), tiny text (1.4.4)
   Operable	UI components must be operable by all users	Keyboard trap (2.1.2), no skip nav (2.4.1), no page title (2.4.2), ambiguous links (2.4.4), marquee/blink (2.3.1)
   Understandable	Information and UI operation must be understandable	Missing lang attribute (3.1.1), no form labels (3.3.2)
   Robust	Content must be robust enough for assistive technologies	Deprecated elements like <font> and <marquee> (4.1.1), divs as buttons without ARIA roles (4.1.2)



2. For each violation you identified in Exercise 1.3, determine which POUR principle it falls under. Most demo app violations span all 4 principles.

[!NOTE] WCAG 2.2 Level AA has 55 success criteria across these 4 principles. The demo apps violate criteria from every principle, making them comprehensive test targets for the scanner tools you will use in Labs 02–04.

Verification Checkpoint

Before proceeding, verify:

• Can name all 5 demo apps and their tech stacks
• Demo app 001 is running at http://localhost:8001
• Identified at least 5 visible violations in demo app 001
• Can explain the 4 WCAG POUR principles with examples from the demo apps

Next Steps

Proceed to Lab 02: axe-core — Automated Accessibility Testing.
