Overview

Item Value
Duration 35 minutes
Level Advanced
Prerequisites Lab 04 completed on an APIM tier that supports backend pools and circuit breakers

notebooks/demo4-resilient-pool.ipynb builds a pool backend, demo4-aoai-pool, with two priority-1 members, demo4-ptu-east (weight 2) and demo4-ptu-central (weight 1), and a priority-2 spillover member, demo4-payg. Each member has a circuit breaker that trips on 429 and 5xx responses and honors Retry-After. The API policy delegates selection to APIM with a single set-backend-service line, so the client request never changes.

[!WARNING] The pool routes to mock members hosted on the same APIM instance. It demonstrates priority, weight, circuit-breaker, and spillover decisions; it does not prove live multi-region resilience or provisioned-throughput (PTU) behavior. The member names are labels, not real regions or reserved capacity. Real pool members must use the same model and version, or successful calls can silently drift.

Learning Objectives

By the end of this lab, you will be able to:

  • Explain per-call routing by priority, then weight, then health
  • Distinguish routing mode, which uses mock members, from inference mode, which uses the real model
  • Observe a circuit breaker trip on injected 429 responses and route to the alternate member
  • Confirm recovery only after a recorded fault
  • Explain why the mock API still requires its credential

Exercises

Exercise 5.1: Read the pool policy

Get-Content policies/demo4-resilient-pool.xml
Get-Content policies/demo4-mock-origin.xml

Expected result: the API policy contains <set-backend-service backend-id="demo4-aoai-pool" />, and the mock-origin policy returns a chat-completions-shaped body with an x-served-by header, or an origin 429 with Retry-After when its fault switch is set.

Exercise 5.2 (Hands-on): Make the inference baseline call

Open notebooks/demo4-resilient-pool.ipynb and run through the inference mode section.

Expected result: one call reaches the real model through the same pool policy. It proves the pool governs inference traffic; it does not identify a member, because real responses carry no x-served-by header.

Exercise 5.3 (Hands-on): Observe routing and weighting

Run the CALL 1 and CALL 2 sections in routing mode.

Expected result: each unchanged client call shows its serving member in x-served-by, and 30 healthy calls split approximately 2:1 between East and Central. This records demo4.routing_paths.

The ratio is approximate. A small sample never promises an exact distribution, but an unknown or missing x-served-by value, a 404, or an unexpected status fails the phase.

Exercise 5.4 (Hands-on): Fault a member and spill over

Run the FAULT section.

Expected result: East returns the injected 429 responses and its breaker opens, Central then serves the priority-1 traffic, and when Central is also faulted, PAYG serves the spillover. This records demo4.fault_observed and demo4.alternate_routing.

A breaker that fails to trip is a failed objective, not a warning compatible with success. Every fault switch is healed in finally, and a separate heal-everything cell restores all mock members at any time.

Exercise 5.5 (Hands-on): Recover

Run the RECOVER section.

Expected result: after the breaker period expires, East appears again in x-served-by. This records demo4.recovery only after a recorded fault.

Exercise 5.6: Confirm the mock credential is enforced

Expected result: a direct call to the mock API without its credential is rejected. This negative probe records demo4.mock_auth_enforced. The mock is never made anonymous to fix routing.

Exercise 5.7: Review the session evidence

[!NOTE] Reviewed evidence from session 36608221120-1 (workflow run), rendered on 2026-09-29 from sanitized results only.

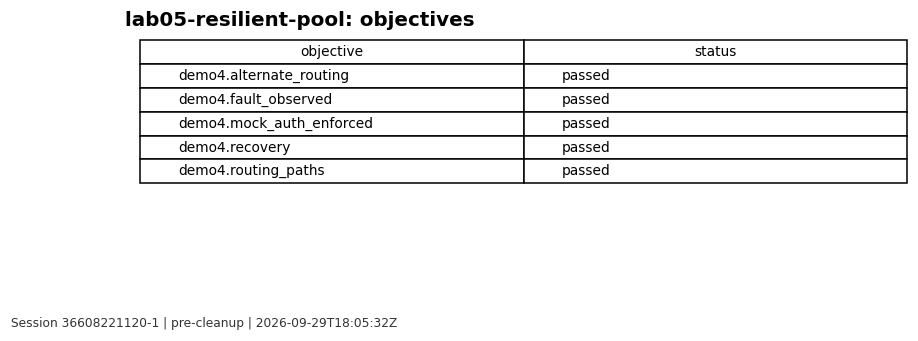

Objective results for Lab 05 from the reviewed session

Validation Checklist

  • The client request was byte-identical in every phase
  • Every routed call returned a known x-served-by member
  • East faults preceded Central routing, and Central faults preceded PAYG routing
  • Recovery was observed only after a recorded fault
  • The mock API rejected a call without its credential

Knowledge Check

  • In what order does APIM evaluate pool members for each call?
  • Why does a healthy East response without a preceding fault fail the recovery objective?
  • What would you need to add to claim live multi-region resilience?
  • Why must every real pool member use the same model and version?

Next Steps

Continue to Lab 06: Estimated model-token showback.
