Lab 07: GitHub Actions — Multi-Engine Pipeline
| Duration | Level | Prerequisites |
|---|---|---|
| 45 min | Advanced | Lab 06 |
Learning Objectives
- Understand the 3-job workflow structure (Unicode, Semantic, MCP)
- Configure PR gating with severity thresholds
- Set up cross-repo SARIF upload with
ORG_ADMIN_TOKEN

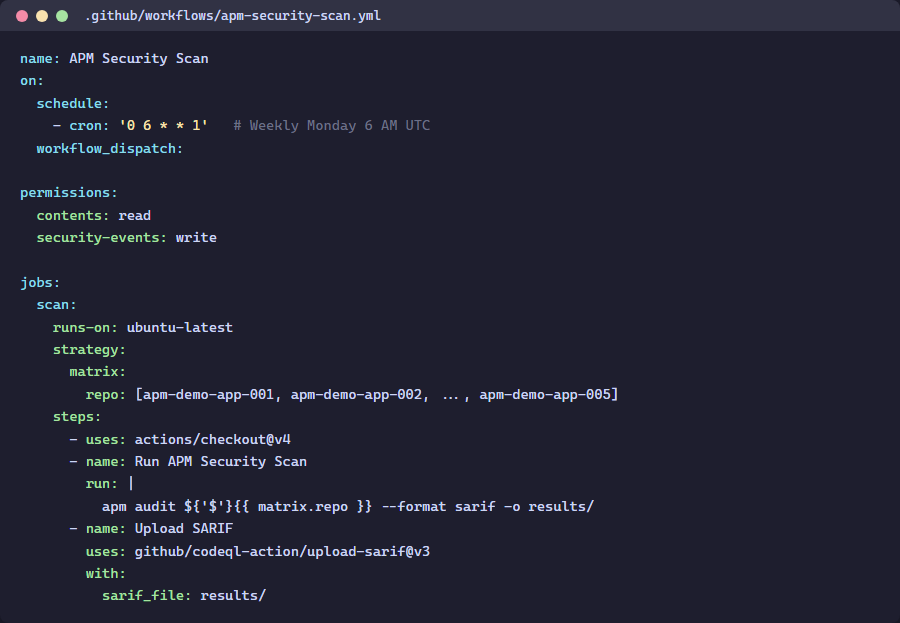

Exercise 1: Review the Scan Workflow
Working Directory: Run the following commands from the
apm-security-scan-demo-apprepository root.
Get-Content .github\workflows\apm-security-scan.yml
Exercise 2: Review the Gate Workflow
Get-Content .github\workflows\apm-security-gate.yml
Exercise 3: Create a PR with Violations
Create a branch, add a violation, and open a PR:
git checkout -b test/apm-gate
# Add a violation to a file
git add -A
git commit -m "test: add violation to trigger gate"
git push -u origin test/apm-gate
Open a PR and observe the gate workflow blocking the merge.
Verification Checkpoint
- You understand the 3-job workflow structure
- The gate workflow blocks PRs with critical findings
- Cross-repo SARIF upload works via
ORG_ADMIN_TOKEN
Next Steps
Proceed to Lab 08: Power BI Dashboard.
